Overview
Please consider the PICkit 3 Debug Express (DV164131). PICkit 1 is not recommended for new designs.
The PICkit™ 1 Flash Starter Kit is a low-cost development kit with an easy-to-use interface for programming Microchip’s 8-/14-pin Flash family of microcontrollers. This starter kit is designed to help you get up to speed quickly using PIC® microcontrollers.
The kit provides everything needed to program, evaluate and develop applications using Microchip’s powerful 8-/14-pin Flash family of microcontrollers. Instructions are provided in a series of seven tutorials that cover I/O, Interrupts, A/D Converters, Comparators, Data Tables and Timers. All source code files for the tutorials are furnished.
Supported Operating Systems:
· Windows® 98 Second Edition
· Windows ME
· Windows 2000
· Windows XP
Important Note for Windows 98 1st Edition Users:
These applications are NOT compatible with Windows 98 1st edition. DO NOT INSTALL THIS SOFTWARE ON WINDOWS 98 1ST EDITION.
- PICkit Classic V1.74 supports these mid-range Flash PIC® microcontrollers:
- - PIC12F629, 635, 675, 683,
- - PIC16F630, 636, 676,
- - PIC16F684, 685, 687, 688, 689, 690, 785,
- - PIC16F913, 914, 916, 917, 946
- PICkit Signal Analysis Daughterboard
- Combined with the PICkit Signal Analysis software, it adds Oscilloscope, FFT, Histogram and Strip chart functions while also programming the mid-range devices listed above.
- PICkit Baseline Flash V1.30 supports nine Baseline Flash PIC® microcontrollers:
- - PIC10F 200*, 202*, 204*, 206*, 220, 222
- - PIC12F508, 509, 510
- - PIC16F54*, 57*, 59*
- - PIC16F505, 506
* Some devices require an adapter for compatibility. See TB079 for complete details
Available USB Port
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| DC Motor Control Tips n Tricks | Supporting Collateral | Download | ||
| PIC® MCU CCP and ECCP Tips n Tricks | Supporting Collateral | Download | ||
| PICkit™ 1 All Lessons | Miscellaneous | Download | ||
| PIC MCU Comparator Tips n Tricks | Supporting Collateral | Download | ||
| TC1047A Temperature-to-Voltage Converter PICtail™ Demo Board User's Guide | User Guide | Download | ||
| PICkit 1 Baseline Flash V1.31 | Miscellaneous | Download | ||
| PICkit 1 Classic Flash V1.74 | Miscellaneous | Download | ||
| Programming Baseline Flash Devices with PICkit 1 | Application Notes | Link | Download | |
| PICkit™ Signal Analysis v2.20 | Miscellaneous | Download | ||
| Signal Analysis Board Firmware | Software Libraries and Firmware | Download | ||
| PICkit 1 Version 2.0.2 Firmware | Software Libraries and Firmware | Download | ||
| Signal Analysis PICtail™ Daughter Board User's Guide | User Guide | Download | ||
| PICkit 1 FLASH Starter Kit USB Installation for Windows 98 Second Edition | User Guide | Download | ||
| Low Cost USB Microcontroller Programmer The building of the PICkit™ 1 FLASH Starter Kit | Application Notes | Link | Download |
| Tool Details |
|---|

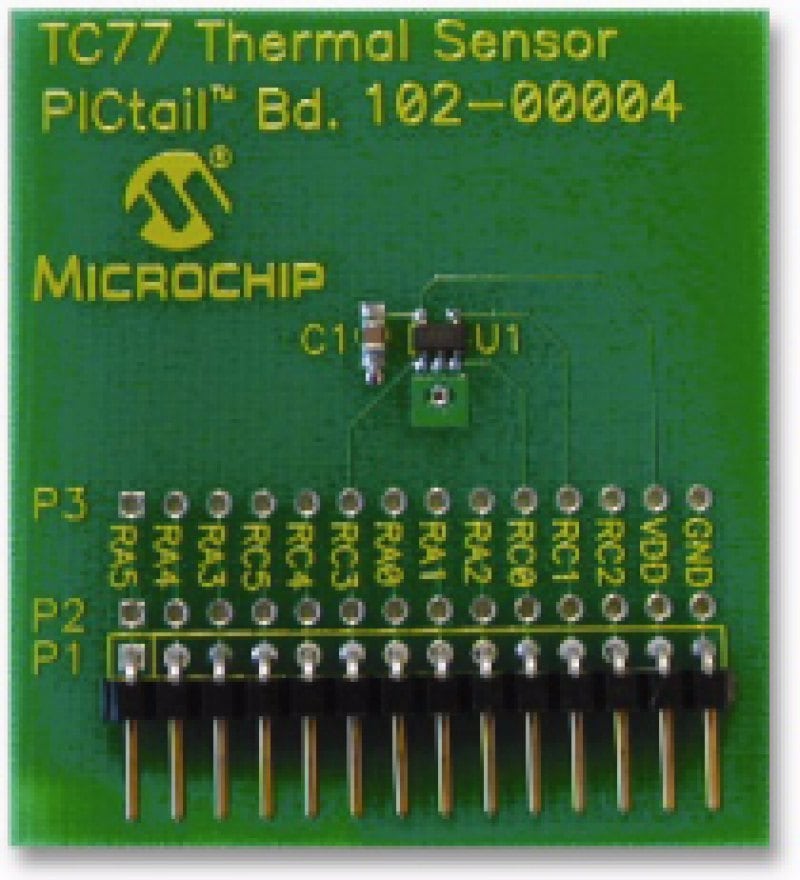

The TC77 Thermal Sensor PICtail Demo Board demonstrates how to interface the TC77 Thermal Sensor device to a microcontroller.
|

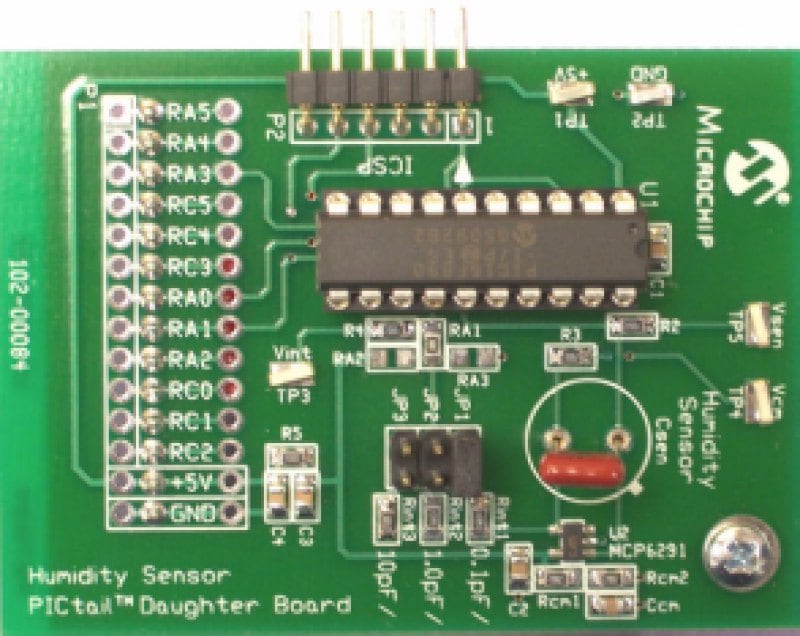

This board supports the capacitive humidity sensor application note AN1016. It measures the capacitance of a relative humidity sensor plugged into the board.
|
The MCP3221 PICtail™ Demonstration Board is designed to demonstrate Microchip’s MCP3221 device.
|

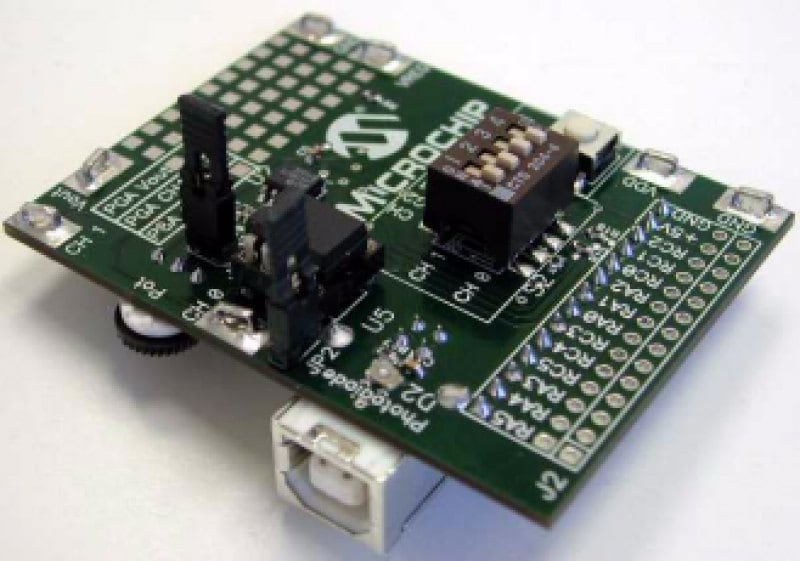

Use the MCP6S22 PGA PICtail™ Demo Board to evaluate and demonstrate Microchip Technology’s MCP6S21/2/6/8 Programmable and MCP6S91/2/3 Gain Amplifier (PGA) families.
|

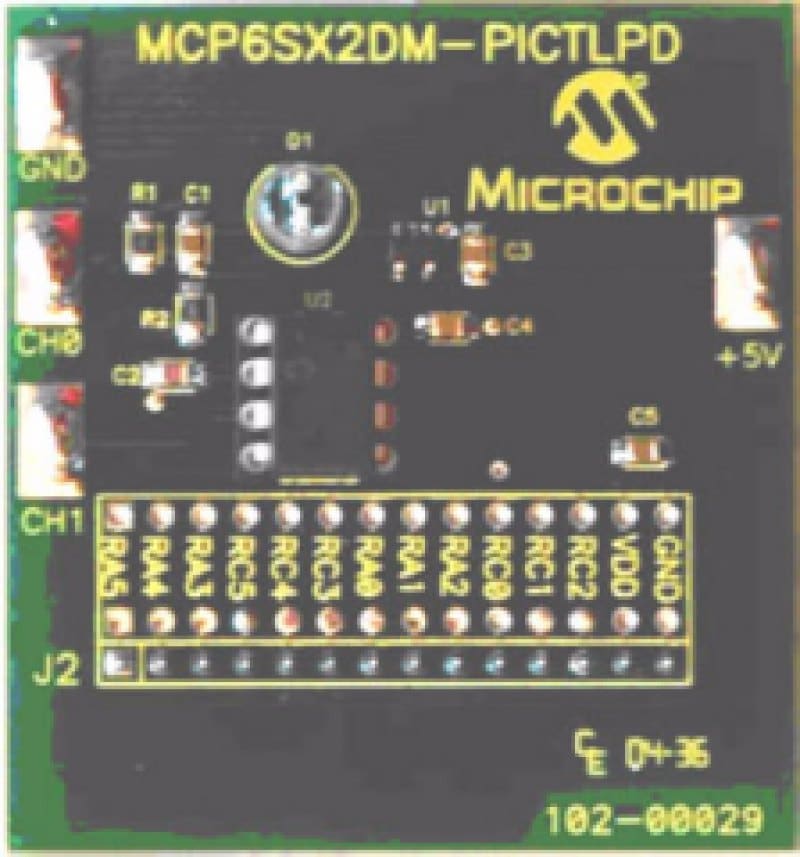

The MCP6SX2 PGA Photodiode PICtail™ Demo Board features a PNZ334 photodiode, MCP6001U op amp, and MCP6S22 and MCP6S92 Programmable Gain Amplifiers (PGA).
|
The MCP6SX2 PGA Thermistor PICtail Demo Board features the MCP6S22 and MCP6S92 Programmable Gain Amplifiers (PGA).
|

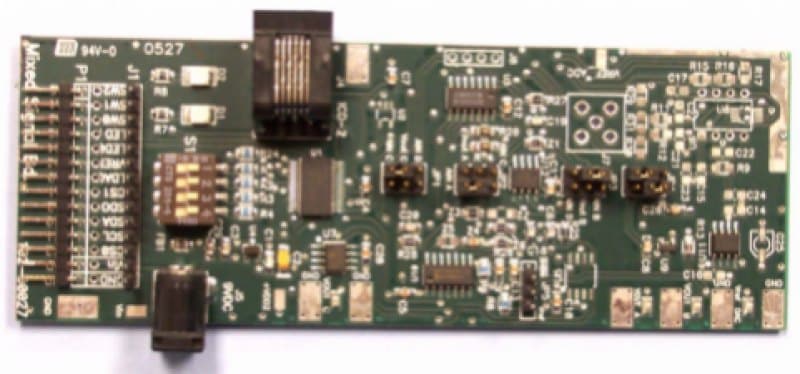

The Mixed Signal PICtail™ Evaluation Board enables quick and accurate evaluation of the performance of several Microchip DACs, ADCs, LDOs, Vrefs and Operational Amplifiers.
|
