Part Number: ADM00497

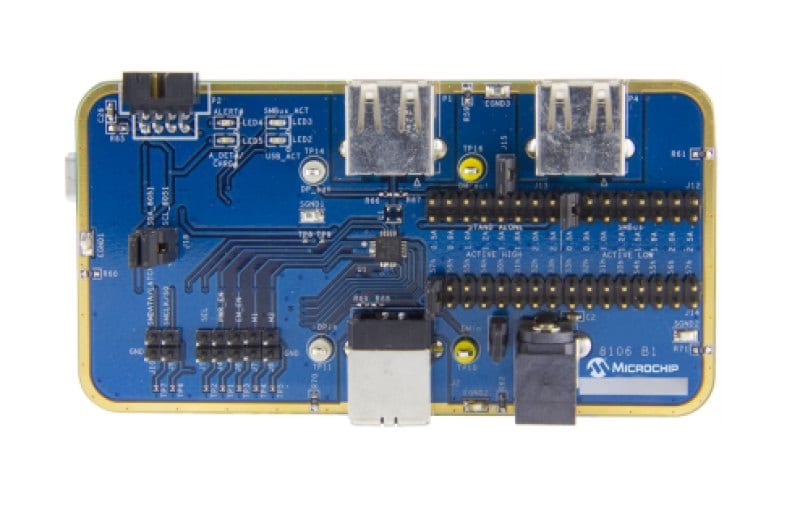

UCS1002 EVALUATION BOARD





  • Graphical user interface for control of all functions
  • Built-in Highest Current Algorithm demonstration
  • Charge ration and current measurement plot mode
  • Capability to create custom emulation profiles
  • Fully BC1.2 compliant

    •



    View Purchasing Options
    Contact Us

    Overview

    The UCS1002 Evaluation Board allows the user to use a graphical user interface to demonstrate the Highest Current Algorithm, apply charger emulation profiles, and set up for full BC1.2 CDP, DCP, and SDP modes. Options in the GUI include custom profile register configuration, dead battery routines, charge ration operation, and configuration of fault handling.

    Devices Supported: UCS1002
