Part Number: AC243005-1

SERIAL SUPERFLASH® KIT 1

Overview

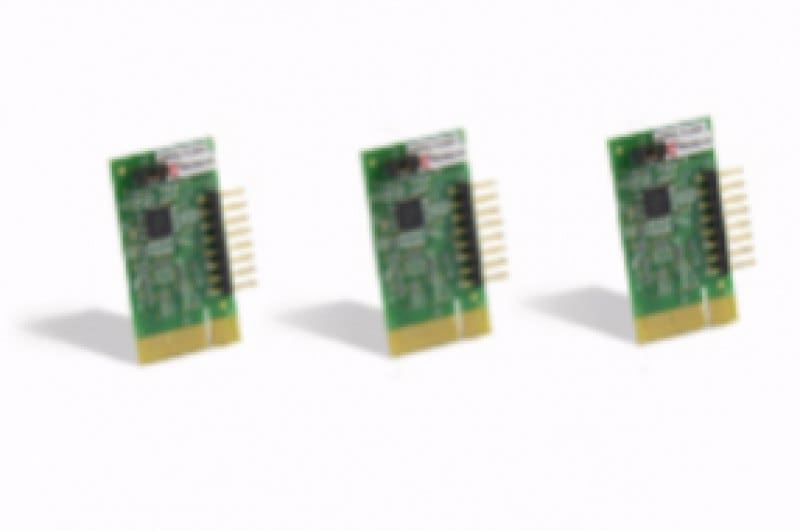

The Serial SuperFlash® Kit 1 allows evaluation of SST Serial Flash Device which are made using the SST SuperFlash® technology. The Serial SuperFlash® Kit 1 contains three Serial Flash PICtail™ Plus Daughter Boards. The Serial Flash PICtail Plus Daughter Board is designed to interface with PICtail Plus connector found on Explorer 16 development board.

  • 8-pin header provides easy access to Serial Flash pins for probing and evaluation
  • 3-pin header provides easy access for external power supply and power measurement capability
  • Plugs into PICtail™ Plus connector of Explorer 16 development board

Required Development Tools



Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
SST26VF032 Software Drivers and Example Codes Supporting Collateral Download
SST25VF064C Software Drivers and Example Codes Supporting Collateral Download
SST25VF016B Software Drivers and Example Codes Supporting Collateral Download
Serial Flash PICtail Plus Daughter Board Schematic Board Design Files Download
Serial SuperFlash® Kit 1 Infosheet Brochures Download
