Evaluate Ethernet and Connectivity Designs Faster With Microchip
Microchip's newest lineup expands its industrial and automotive Ethernet portfolio with evaluation boards for USB-to-Gigabit Ethernet bridging, Single-Pair Ethernet and real-time power monitoring.
Whether you are bridging USB to Gigabit Ethernet, building a Single-Pair Ethernet network or monitoring power in real time, Microchip's newest evaluation boards help engineers move from concept to prototype faster.

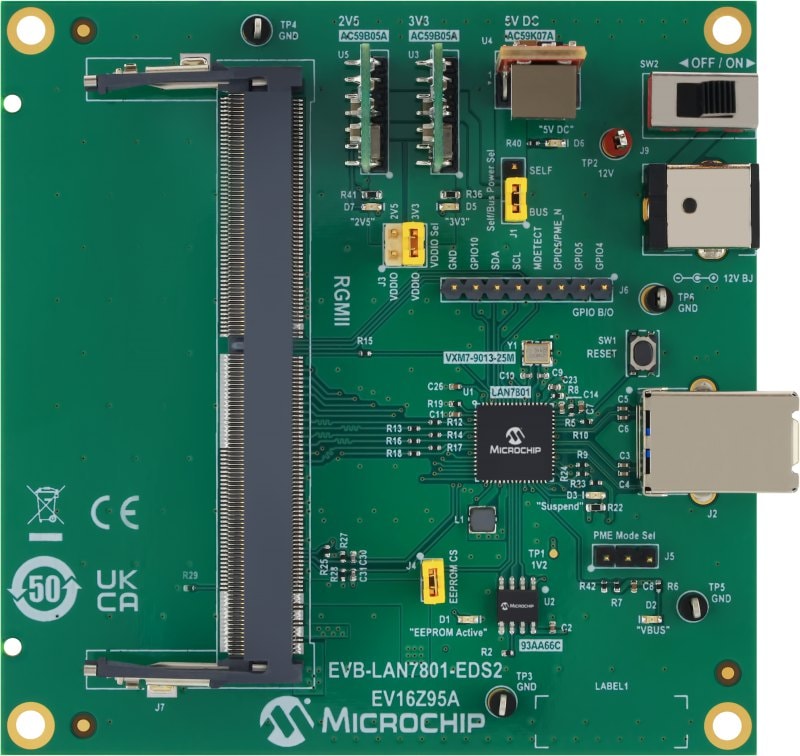

EVB-LAN7801-EDS2 — USB to Gigabit Ethernet Evaluation Board
Part: EV16Z95A
 |
The EV16Z95A is an evaluation board for the LAN7801, our USB 3.2 Gen 1 to Gigabit Ethernet controller. It is designed to streamline USB-to-Ethernet integration for embedded and industrial applications, allowing developers to validate driver support and network throughput across Windows, Linux and macOS host platforms.
Best for: Industrial edge gateways, embedded compute modules and USB-to-Gigabit Ethernet bridging

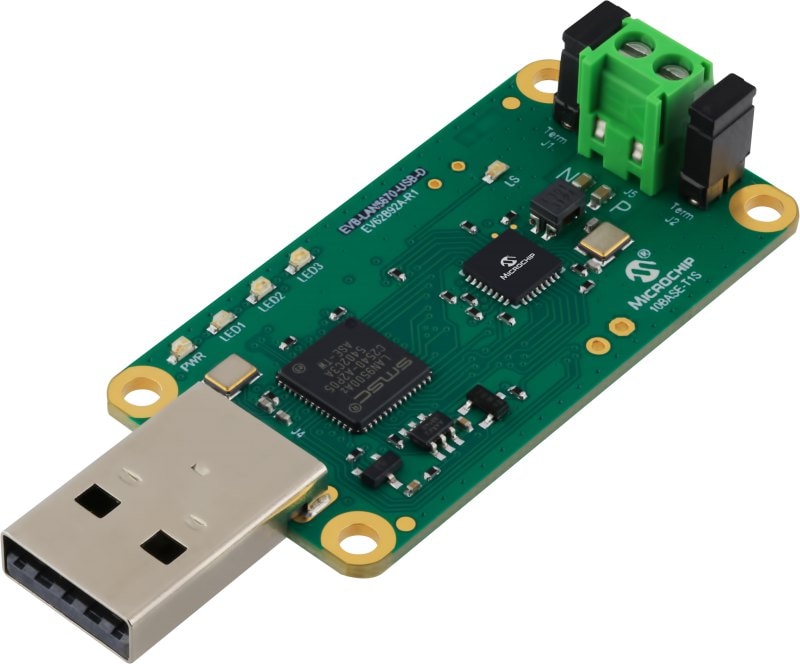

EVB-LAN8670-USB-D — Single-Pair Ethernet Evaluation Board
Part: EV62B92A
 |
The EV62B92A supports the LAN8670, our 10BASE-T1S Single-Pair Ethernet transceiver, with an added USB interface for straightforward host connectivity. The board supports multi-drop network topologies in a compact, space-efficient form factor, making it a practical fit for developers working on low-power IoT edge nodes, building automation sensors and automotive subsystems using the Single-Pair Ethernet standard.
Best for: IoT edge nodes, building automation sensors and automotive subsystems using Single-Pair Ethernet

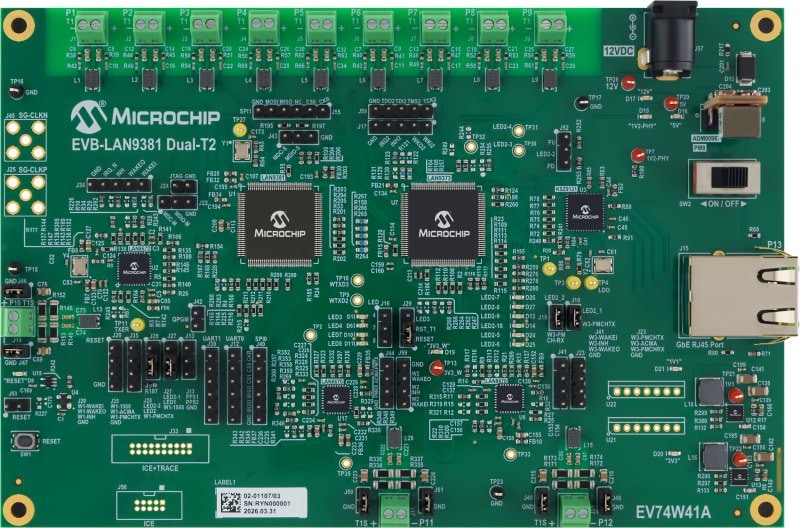

EVB-LAN9381 Dual-T2 — Dual-Channel Automotive Ethernet Board
Part: EV74W41A
 |
The EV74W41A evaluates the LAN9381 in a dual 100BASE-T1 (T2) configuration, providing two independent 100 Mbps Single-Pair Ethernet channels well suited for automotive and industrial networking applications. The board supports OPEN Alliance TC10 sleep/wake standards and automotive-grade signal integrity, making it a practical choice for in-vehicle networking and IIoT backplane designs.
Best for: In-vehicle networking, IIoT backplane designs and dual-channel Single-Pair Ethernet evaluation
Dev Tool for ICP1040-1-110I — Power Monitoring Evaluation Board
Part: EV76C83A
The EV76C83A is a dedicated development tool for the ICP1040-1-110I, our intelligent current and power monitor IC. The board simplifies hardware bring-up and register-level configuration, with an I2C/SPI interface and an on-board USB-to-serial bridge for PC-based GUI evaluation, giving engineers a ready-to-use platform for evaluating the ICP1040's real-time telemetry, fault detection and power measurement capabilities in a single IC.
Best for: Power management design, real-time current and voltage telemetry and fault detection evaluation
New Connectivity Product
Part: EV21B88A
 |
EV21B88A is our newest addition to its connectivity portfolio. Full product documentation is in progress — visit microchip.com for the latest datasheet, design files and software support as they become available.
Next Steps
All products are available now on MicrochipDirect. Visit the links below to order and access documentation.
Connect with the author on LinkedIn or reach out to your regional FAE.
