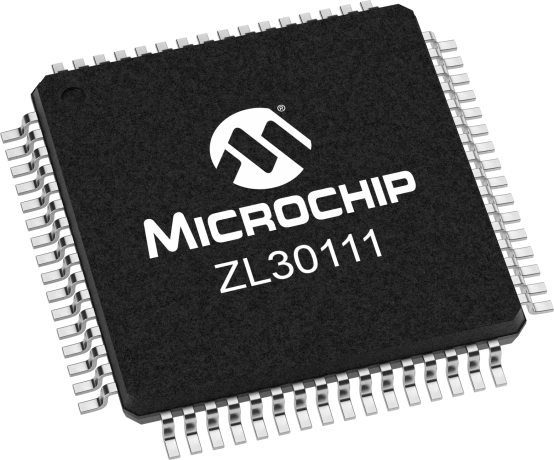

product primary image

ZL30111

POTS line card PLL

Status: In Production

Features:

  • Synchronizes to 8 kHz, 2.048 MHz, 8.192 MHz or 19.44 MHz input
  • Provides a range of clock outputs: 2.048 MHz, 4.096 MHz and 8.192 MHz
  • Provides 2 styles of 8 kHz framing pulses
  • Automatic entry and exit from freerun mode on reference fail Provides DPLL lock and reference fail indication
  • DPLL bandwidth of 922 Hz for all rates of input reference and 58 Hz for an 8 kHz input reference
  • Less than 0.6 nsppintrinsic jitter on all output clocks
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The ZL30111 POTS line card PLL contains a digital phase-locked loop (DPLL), which provides timing and synchronization for SLIC/CODEC devices.
The ZL30111 generates TDM clock and framing signals that are phase locked to the input reference. It helps ensure system reliability by monitoring its reference for stability and by maintaining stable output clocks during short periods when the reference is unavailable.

Additional Features
  • Synchronizes to 8 kHz, 2.048 MHz, 8.192 MHz or 19.44 MHz input
  • Provides a range of clock outputs: 2.048 MHz, 4.096 MHz and 8.192 MHz
  • Provides 2 styles of 8 kHz framing pulses
  • Automatic entry and exit from freerun mode on reference fail Provides DPLL lock and reference fail indication
  • DPLL bandwidth of 922 Hz for all rates of input reference and 58 Hz for an 8 kHz input reference
  • Less than 0.6 nsppintrinsic jitter on all output clocks
  • 20 MHz external master clock source: clock oscillator or crystal
  • Simple hardware control interface
Parametrics
Name
Value
Type
PDH/SDH
DPLLs or Paths
1
DPLL Bandwidth (Hz)
922
Inputs
1
CMOS Outputs
3
Typical Jitter (12kHz-20MHz) fs RMS
<600
Diff InputFreq Range
kHz, 2.048 MHz, 8.192 MHz or 19.44 MHz input
Output Freq Range
19.44 MHz
NV Memory
N/A
NCO ppb
N/A
Align
2

Documents

Jump to:

Data Sheets


247KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ZL30111QDG1
0.286700
2.562500
64
TQFP
10x10x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
