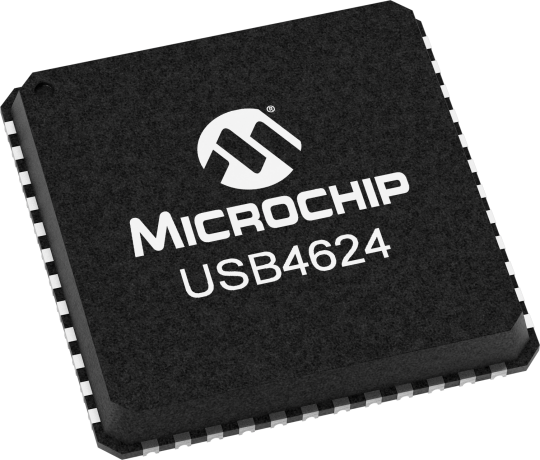

USB4624

Status: In Production

Features:

  • Hub Controller IC with 4 downstream ports
  • Upstream port selectable between HSIC or USB 2.0
  • 2 downstream HSIC ports
  • USB-IF Battery Charger revision 1.2 support on up and downstream ports (DCP, CDP, SDP)
  • Battery charging support for Apple® devices
  • FlexConnect: Downstream port 1 able to swap with upstream port, allowing master capable devices to control other devices on the hub
  • USB to I2C™/SPI bridge endpoint support
  • USB Link Power Management (LPM) support
  • SUSPEND pin for remote wakeup indication to host
  • Start Of Frame (SOF) synchronized clock output pin
  • Vendor Specific Messaging (VSM) support
  • Enhanced OEM configuration options available through OTP or SMBus Slave Port
  • VBUS (5V) or VBAT only operation
  • 3.3V only operation
  • VBAT + 1.8V operation
  • 3.3V + 1.8V operation
  • 48-pin (7x7mm) SQFN, RoHS compliant package
  • LCD Monitors and TVs
  • Multi-function USB Peripherals
  • PC Motherboards
  • Set-top Boxes, DVD Players, DVR/PVR
  • Printers and Scanners
  • PC Media Drive Bay
  • Portable Hub Boxes
  • Mobile PC Docking
  • Embedded Systems
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The Microchip USB4624 is a low-power, OEM configurable, MTT (Multi-Transaction Translator) USB 2.0 hub controller with 4 downstream ports and advanced features for embedded USB applications. The USB4624 is fully compliant with the USB 2.0 Specification, USB 2.0 Link Power Management Addendum, High-Speed Inter-Chip (HSIC) USB Electrical Specification Revision 1.0, and will attach to an upstream port as a Full-Speed hub or as a Full-/Hi-Speed hub. The 4-port hub supports Low-Speed, Full-Speed, and Hi-Speed (if operating as a Hi-Speed hub) downstream devices on all of the enabled downstream (non-HSIC) ports. HSIC ports support only Hi-Speed operation.

The USB4624 has been specifically optimized for embedded systems where high performance, and minimal BOM costs are critical design requirements. Standby mode power has been minimized and reference clock inputs can be aligned to the customer’s specific application. Flexible power rail options ease integration into energy efficient designs by allowing the USB4624 to be powered in a single-source (VBUS (5V), VBAT, 3.3V) or a dual-source (VBAT + 1.8, 3.3V + 1.8) configuration. Additionally, all required resistors on the USB ports are integrated into the hub, including all series termination and pull-up/pull-down resistors on the D+ and D– pins.

The USB4624 supports both upstream battery charger detection and downstream battery charging. The USB4624 integrated battery charger detection circuitry supports the USB-IF Battery Charging (BC1.2) detection method and most Apple devices. These circuits are used to detect the attachment and type of a USB charger and provide an interrupt output to indicate charger information is available to be read from the device’s status registers via the serial interface. The USB4624 provides the battery charging handshake and supports the following USB-IF BC1.2 charging profiles:

  • DCP: Dedicated Charging Port (Power brick with no data)
  • CDP: Charging Downstream Port (1.5A with data)
  • SDP: Standard Downstream Port (0.5A with data)
  • Custom profiles loaded via SMBus or OTP
he USB4624 provides an additional USB endpoint dedicated for use as a USB to I2C/SPI interface, allowing external circuits or devices to be monitored, controlled, or configured via the USB interface.


*The USBCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features

    Highlights

    • Hub Controller IC with 4 downstream ports
    • High-Speed Inter-Chip (HSIC) support
      • Upstream port selectable between HSIC or USB 2.0
      • 2 downstream HSIC ports
    • USB-IF Battery Charger revision 1.2 support on up and downstream ports (DCP, CDP, SDP)
    • Battery charging support for Apple® devices
    • FlexConnect: Downstream port 1 able to swap with upstream port, allowing master capable devices to control other devices on the hub
    • USB to I2C™/SPI bridge endpoint support
    • USB Link Power Management (LPM) support
    • SUSPEND pin for remote wakeup indication to host
    • Start Of Frame (SOF) synchronized clock output pin
    • Vendor Specific Messaging (VSM) support
    • Enhanced OEM configuration options available through OTP or SMBus Slave Port
    • Flexible power rail support
      • VBUS (5V) or VBAT only operation
      • 3.3V only operation
      • VBAT + 1.8V operation
      • 3.3V + 1.8V operation
    • 48-pin (7x7mm) SQFN, RoHS compliant package

    Target Applications

    • LCD Monitors and TVs
    • Multi-function USB Peripherals
    • PC Motherboards
    • Set-top Boxes, DVD Players, DVR/PVR
    • Printers and Scanners
    • PC Media Drive Bay
    • Portable Hub Boxes
    • Mobile PC Docking
    • Embedded Systems
Parametrics
Name
Value
Upstream Port
USB 2.0 or HSIC
USB Speed
USB 2.0
Downstream Ports
4
MGMT I/F
I2C
ROM I/F
SPI
Op Voltage (V)
3.3
MultiTRAK Tech
Yes
PortMap
Yes
PortSwap
Yes
PHYBoost
Yes
Temp. Range Min.
-40
Temp. Range Max.
85

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
Demo & Evaluation Boards
USB4624 4-port Switchable USB 2.0 and HSIC Hub Evaluation Board
USB4624 4-port Switchable USB 2.0 and HSIC Hub Evaluation Board ( EVB-USB4624BCUH )

The EVB-USB4624BCUH is a 4-layer RoHS-compliant Evaluation Board that utilizes the USB4624 to provide a fully functional 4-port high-speed hub with battery charging capabilities. The USB4624 is fully compliant with the USB 2.0 Specification, USB 2.0 Link Power Management LPM Addendum, High-Speed Inter-Chip HSIC USB Electrical Specification Revision 1.0 and supports both a HSIC and a USB 2.0...

Learn More
Add To Cart
Software Libraries
MPLAB Connect Configurator V1.9.x

Learn More
MPLAB(r) Connect Configurator - Programming and Configuration Utility

Follow this link for the latest revision of the MPLAB(r) Connect Configurator -> Click

...

Learn More
OBJ Hub Card Reader

OBJ Hub Card Reader

Learn More
USB2530 Windows SDK

Windows SDK for USB2530 Family of devices

Learn More
