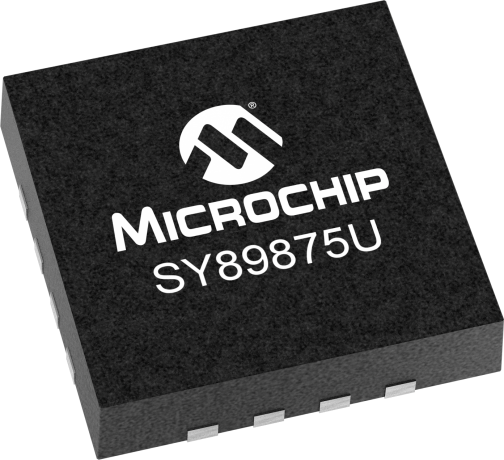

product primary image

SY89875U

Status: In Production

Features:

  • Integrated programmable clock divider and 1:2 fanout buffer
  • >2.0GHz fMAX
  • <200ps tr/tf
  • <15ps within device skew
  • <10psPP total jitter
  • <1psRMS cycle-to-cycle jitter
  • Unique input termination and VTPin for DC-coupled and AC-coupled Inputs; CML, PECL, LVDS and HSTL
  • LVDS compatible outputs
  • TTL/CMOS inputs for select and reset
  • Parallel programming capability
  • Programmable divider ratios of 1, 2, 4, 8 and 16
  • Low voltage operation 2.5V
  • Output disable function
  • -40°C to 85°C temperature range
  • Available in 16-pin (3mm x 3mm) MLF® package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

This low-skew, low-jitter device is capable of accepting a high-speed (e.g., 622MHz or higher) CML, LVPECL, LVDS or HSTL clock input signal and dividing down the frequency using a programmable divider to create a lower speed version of the input clock. Available divider ratios are 2, 4, 8 and 16, or straight pass-through.The differential input buffer has a unique internal termination design that allows access to the termination network through a VT pin. This feature allows the device to easily interface to different logic standards. A VREF-AC reference is included for AC-coupled applications.The /RESET input asynchronously resets the divider. In the pass-through function (divide by 1) the /RESET synchronously enables or disables the outputs on the next falling edge of IN (rising edge of /IN).

Additional Features
    • Integrated programmable clock divider and 1:2 fanout buffer
    • Guaranteed AC performance over temperature and voltage:
      • >2.0GHz fMAX
      • <200ps tr/tf
      • <15ps within device skew
    • Low jitter design:
      • <10psPP total jitter
      • <1psRMS cycle-to-cycle jitter
    • Unique input termination and VTPin for DC-coupled and AC-coupled Inputs; CML, PECL, LVDS and HSTL
    • LVDS compatible outputs
    • TTL/CMOS inputs for select and reset
    • Parallel programming capability
    • Programmable divider ratios of 1, 2, 4, 8 and 16
    • Low voltage operation 2.5V
    • Output disable function
    • -40°C to 85°C temperature range
    • Available in 16-pin (3mm x 3mm) MLF® package
Parametrics
Name
Value
Product Type
Divider
Description
÷1, ÷2, ÷4, ÷8, ÷16; 2 Outputs
Input
ANY
Output
LVDS
Supply Voltage
2.5V
Max Freq (GHz)
2
Max Prop Delay (ps)
870
Icc (mA)
70
Max Within Device Skew (ps)
15
OE
True
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Output Type
LVDS

Documents

Jump to:

Data Sheet

04/30/2018
236KB

User Guides

11/11/2015
169KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89875UMG
0.021300
0.050000
16
VQFN
3x3x1.00mm
NiPdAu
e4
SY89875UMG-TR
0.021300
0.801700
16
VQFN
3x3x1.00mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
