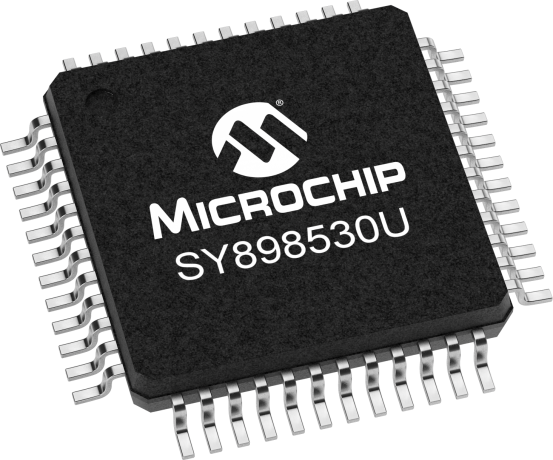

SY898530U

Status: In Production

Features:

  • 16 Differential 2.5V LVPECL outputs
  • Differential CLK inputs. Accepts LVDS, LVPECL, LVHSTL, SSTL, HCSL logic levels
  • Translates any single-ended input signal to 2.5V LVPECL levels with a resistor bias on /CLK input
  • 500MHz maximum output frequency
  • <50ps output skew
  • <250ps part-to-part skew
  • <2ns propagation delay
  • 3.3V Core, 2.5V output operating supply
  • 0°C to +70°C operating temperature
  • Available in 48-pin TQFP package
  • Pin-to-pin compatible with ICS8530
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The SY898530U is a 1:16 Fanout buffer which can accept most standard differential logic levels and outputs the signal as a differential 2.5V LVPECL signal. The part can amplify input signals as small as 150mVpp to the full LVPECL output swing. The SY898530U is well suited for clock distribution applications which demand versatility and low-skew performance. It is pin-to-pin compatible with IDT's ICS8530 fanout buffer.The SY898530U operates from a 3.3V ±5% core power supply and a 2.5V ±5% output supply and is guaranteed over the full commercial temperature range (0°C to +70°C). It is available in a 48-pin TQFP lead-free package.

Additional Features
    • 16 Differential 2.5V LVPECL outputs
    • Differential CLK inputs. Accepts LVDS, LVPECL, LVHSTL, SSTL, HCSL logic levels
    • Translates any single-ended input signal to 2.5V LVPECL levels with a resistor bias on /CLK input
    • 500MHz maximum output frequency
    • <50ps output skew
    • <250ps part-to-part skew
    • <2ns propagation delay
    • 3.3V Core, 2.5V output operating supply
    • 0°C to +70°C operating temperature
    • Available in 48-pin TQFP package
    • Pin-to-pin compatible with ICS8530
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
1:16
Input
LVDS/LVPECL/LVHSTL/SSTL/HCSL
Output
LVPECL
Supply Voltage
3.3
Max Freq (GHz)
0.5
Max Prop Delay (ps)
2000
Icc (mA)
125
Max Within Device Skew (ps)
50
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Output Type
LVPECL

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY898530UTZ
0.125200
0.852000
48
TQFP
7x7x1.0mm
Matte Tin
e3
SY898530UTZ-TX
0.125200
0.738000
48
TQFP
7x7x1.0mm
Matte Tin
e3
SY898530UTZ-TR
0.125200
0.738000
48
TQFP
7x7x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
