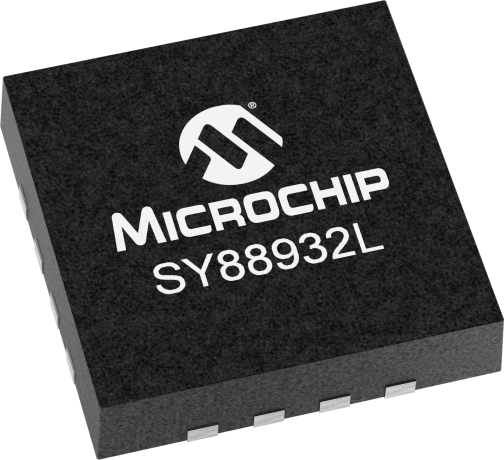

product primary image

SY88932L

Status: In Production

Features:

  • Up to 4.25Gbps operation
  • Modulation current to 60mA
  • Rise/fall times 65ps typical
  • Input 50 internally terminated to VCC
  • TTL /EN with internal 75k pull-down
  • Designed for use with MIC3000 optical transceiver management IC
  • Voltage programmable laser modulation current
  • Single 3.3V power supply
  • Operating temperature range of -40°C to 85°C
  • Available in tiny 16-pin QFN package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY88932L is the smallest available laser driver with a programmable modulation current up to 60mA for Fabry-Perot (FP) or distributed feedback (DFB) lasers. The device is suitable for SONET/SDH applications with data rates up to 4.25Gbps. The SY88932L accepts either CML level or AC-coupled PECL inputs, and incorporates an active low TTL /EN function which shuts off the modulation current when HIGH.

Additional Features
  • Up to 4.25Gbps operation
  • Modulation current to 60mA
  • Rise/fall times 65ps typical
  • Input 50 internally terminated to VCC
  • TTL /EN with internal 75k pull-down
  • Designed for use with MIC3000 optical transceiver management IC
  • Voltage programmable laser modulation current
  • Single 3.3V power supply
  • Operating temperature range of -40°C to 85°C
  • Available in tiny 16-pin QFN package
Parametrics
Name
Value
Part Type
Lasers and EML Drivers - DFB/FP Laser Drivers
Data Rate Capability
4.25
Power Supply (V)
3.3
Data Input Type
CML
Drive Current (mA)
60

Documents

Jump to:

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY88932LMG
0.021300
0.050000
16
VQFN
3x3x0.9mm
NiPdAu
e4
SY88932LMG-TR
0.021300
0.801700
16
VQFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
