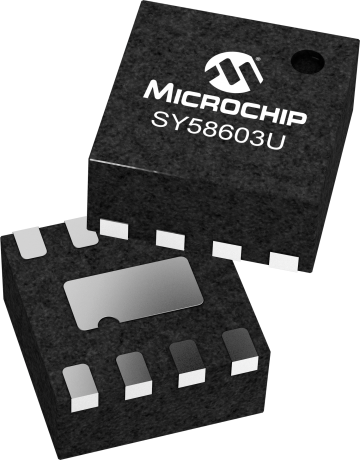

product primary image

SY58603U

Status: In Production

Features:

  • Precision 400mV CML buffer
  • DC-to >4.25Gbps throughput
  • <300ps propagation delay (IN-to-Q)
  • <85ps rise/fall times
  • Prevents output from oscillating when input is invalid
  • Ultra-low jitter design
  • <1psRMS cycle-to-cycle jitter
  • <10psPP total jitter
  • <1psRMS random jitter
  • <10psPP deterministic jitter
  • High-speed CML output
  • 2.5V ±5% or 3.3V ±10% power supply operation
  • Industrial temperature range: -40°C to +85°C
  • Available in 8-pin (2mm x 2mm) DFN package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY58603U is a 2.5/3.3V, high-speed, fully differential CML buffer optimized to provide less than 10pspp total jitter. The SY58603U can process clock signals as fast as 2.5GHz or data patterns up to 4.25Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that interfaces to LVPECL, LVDS or CML differential signals, (AC-coupled or DC-coupled) as small as 100mV (200mVpp) without any level-shifting or termination resistor networks in the signal path. For AC-coupled input interface applications, an integrated voltage reference (VREF-AC) is provided to bias the VT pin. The output is 400mV CML, with extremely fast rise/fall times guaranteed to be less than 85ps.The SY58603U operates from a 2.5V ±5% supply or 3.3V ±10% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require LVPECL or LVDS outputs, consider the SY58604U and SY58605U, buffers with 800mV and 325mV output swings respectively. The SY58603U is part of Micrel's high-speed, Precision Edge® product line.

Additional Features
    • Precision 400mV CML buffer
    • Guaranteed AC performance over temperature and voltage:
      • DC-to >4.25Gbps throughput
      • <300ps propagation delay (IN-to-Q)
      • <85ps rise/fall times
    • Fail Safe Input
      • Prevents output from oscillating when input is invalid
    • Ultra-low jitter design
      • <1psRMS cycle-to-cycle jitter
      • <10psPP total jitter
      • <1psRMS random jitter
      • <10psPP deterministic jitter
    • High-speed CML output
    • 2.5V ±5% or 3.3V ±10% power supply operation
    • Industrial temperature range: -40°C to +85°C
    • Available in 8-pin (2mm x 2mm) DFN package
Parametrics
Name
Value
Product Type
Buffer
Description
Line Driver/Receiver
Input
ANY
Output
CML
Supply Voltage
2.5/3.3V
Max Freq (GHz)
4.25
Max Data (Gbps)
2.5
Max Prop Delay (ps)
350
Icc (mA)
50
OE
False
RPE
False
FSI
True
Input Mux
False
Input EQ
False
Channels
Single
Output Type
CML

Documents

Jump to:

Data Sheet

04/20/2018
665KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY58603UMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
