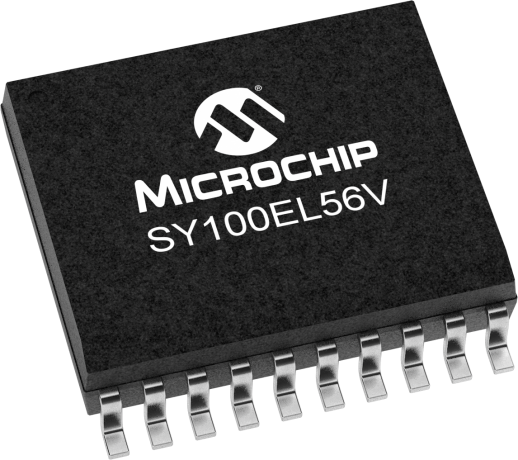

SY100EL56V

Status: In Production

Features:

  • 3.3 and 5V power supply options
  • 440ps propagation delay
  • Separate and common select
  • High bandwidth output transitions
  • Internal 75KΩ input pull-down resistors
  • Available in 20-pin SOIC package
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The SY100EL56V is a dual, fully differential 2:1 multiplexer. The differential data path makes the device ideal for multiplexing low skew clock or other skew sensitive signals. Multiple VBB pins are provided to ease AC coupling input signals.The device features both individual and common select inputs to address both data path and random logic applications.The differential inputs have special circuitry which ensures device stability under open input conditions. When both differential inputs are left open the D input will pull down to VEE, the D input will bias around VCC/2 forcing the Q output LOW.

Additional Features
    • 3.3 and 5V power supply options
    • 440ps propagation delay
    • Separate and common select
    • High bandwidth output transitions
    • Internal 75KΩ input pull-down resistors
    • Available in 20-pin SOIC package
Parametrics
Name
Value
Product Type
Multiplexers
Description
Dual 2:1
Input
ECL
Output
ECL
Supply Voltage
3.3/5V
Max Prop Delay (ps)
740
Max Within Device Skew (ps)
80
OE
False
RPE
False
FSI
False
Input Mux
True
Input EQ
False
Channels
Dual
Output Type
ECL
Output Voltage
3.3/5
