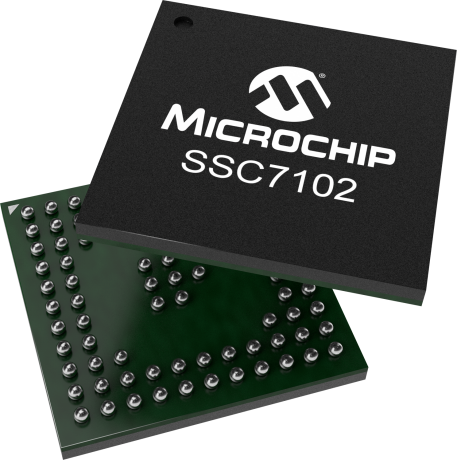

product primary image

SSC7102

Microcontrollers and Processors

Status: Not Recommended for new designs

View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SSC7102 motion coprocessor is a Windows 8.1 certified, HID over I2C, low-power, flexible, turnkey solution. This coprocessor makes implementing sensor fusion easy for ultrabooks, laptops, and tablets.

Microchip partnered with multiple industry-leading sensor manufacturers and sensor-fusion specialists to create this solution, enabling faster time to market without the need for sensor-fusion expertise. The SSC7102 is extremely efficient. It consumes ~4mA while running complex sensor-fusion algorithms, resulting in longer battery life for Windows 8.1 tablet, laptop, and ultrabook applications.

Family parts
SSC7102-GQ-AA0
SSC7102-GQ-AA0-TR
SSC7102-GQ-AB0
SSC7102-GQ-AB0-TR
SSC7102-GQ-AB1-TR
SSC7102-GQ-AB2
SSC7102-GQ-AB2-TR
SSC7102-GQ-BA0
SSC7102-GQ-BA0-TR

Related Products:
SSC7150 Motion Coprocessor for Embedded and Internet of Things (IoT) Applications
MM7150 Motion Module PICtailTM/PICTail Plus Evaluation Board

Additional Features
  • Windows® 8/8.1 certification (HID over I2C)
  • Easy to implement complete turnkey motion coprocessor
  • 32-bit core operating at 48MHz
  • Low power ~4mA in active mode
  • System in deep sleep consumes 0.26mA
  • Self-Calibration
  • Sensor power management
  • Small BGA package
  • Sensor agnostic
  • PCs: Ultrabooks, Laptops and 2-in-1 Convertibles
  • Mobile: Tablets
  • Remote Controls, Gaming
  • BMC150       Bosch Mag+Accel
  • BMG160       Bosch Gyroscope
  • MPU-6500   Invensense Accel+Gyro
  • AK8963C     AKM Mag+Accel

Documents

Jump to:

Brochures

Product Brief


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SSC7102-GQ-AB0
0.128300
0.918367
84
TFBGA
6x6x1.0
SAC
e8
SSC7102-GQ-AB1-TR
0.128300
0.316667
84
TFBGA
6x6x1.0
SAC
e8
SSC7102-GQ-AB2
0.128300
0.918367
84
TFBGA
6x6x1.0
SAC
e8
SSC7102-GQ-AB2-TR
0.128300
0.316667
84
TFBGA
6x6x1.0
SAC
e8
SSC7102-GQ-AA0-TR
0.128300
0.316667
84
TFBGA
6x6x1.0
SAC
e8
SSC7102-GQ-AB0-TR
0.128300
0.316667
84
TFBGA
6x6x1.0
SAC
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
