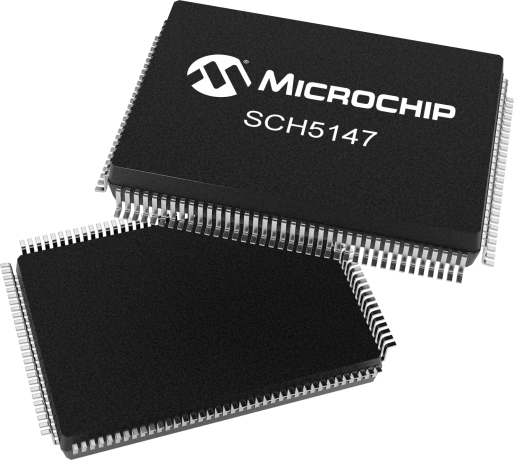

The SCH5147 is a 3.3V (Super I/O Block is 5V tolerant) PC99/PC2001 compliant Super I/O controller with an LPC interface, and includes Hardware Monitoring capabilities, enhanced Security features, Power Control.
There are five analog inputs for monitoring external voltages, as well as internal monitoring of the SIO’s VCC (emulated power well), VTR (signal power well), and VBAT power supplies. The Motherboard Glue logic includes various power management and system logic including generation of nRSMRST, SMBus isolation buffers, and buffered PCI (Peripheral Component Interconnect) reset outputs.
Complete legacy Super I/O functionality including a floppy disk controller with SMSC's true CMOS (Complementary Metal-Oxide-Semiconductor) 765B core and enhanced digital data separator is incorporated. The true CMOS 765B core provides 100% compatibility with IBM PC/XTTM and PC/ATTM architectures and is software and register compatible with SMSC's proprietary 82077AA core.
Development tools data is currently unavailable.
For pricing and availability, contact Microchip Local Sales.
