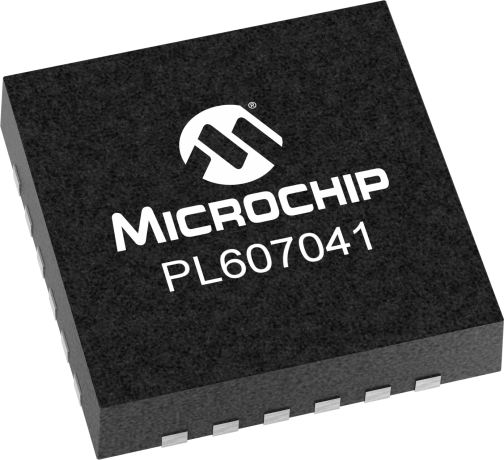

PL607041

Status: In Production

Features:

  • 25MHz fundamental crystal or reference input
  • Generates four HCSL clock outputs at 25MHz, 100MHz, 125MHz, and 200MHz
  • Spread spectrum for EMI reduction
  • 2.5V or 3.3V operating range
  • Typical phase jitter @ 100MHz (1.5MHz to 10MHz): 320fs
  • Industrial temperature range of -40°C to +85°C
  • RoHS and PFOS compliant
  • Available in 24-pin 4mm x 4mm QFN package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The PL607041 is a member of the ClockWorks™ family of devices from Micrel and provides an extremely low-noise Spread-Spectrum clock for PCI-Express requirements.The device operates from a 3.3V or 2.5V power supply and synthesizes four HCSL output clocks at 25MHz, 100MHz, 125MHz, and 200MHz. The PL607041 accepts a 25MHz crystal.For more information and to order samples, please contact your local Microchip FAE.

Additional Features
    • 25MHz fundamental crystal or reference input
    • Generates four HCSL clock outputs at 25MHz, 100MHz, 125MHz, and 200MHz
    • Spread spectrum for EMI reduction
    • 2.5V or 3.3V operating range
    • Typical phase jitter @ 100MHz (1.5MHz to 10MHz): 320fs
    • Industrial temperature range of -40°C to +85°C
    • RoHS and PFOS compliant
    • Available in 24-pin 4mm x 4mm QFN package
Parametrics
Name
Value
Product Type
Low-Jitter Clock Generators
Description
4-Outputs, PCIe Clock with EMI
Input Frequency (MHz) Crystal
25
# of Outputs
4
Voltage
2.25 - 3.63
PDB
False
OE
True
FSEL
True
CSEL
False
CLK
False
Output Logic
HCSL
Ultra Low Power
False
Output Frequency Min. (MHz)
100
Output Frequency Max. (MHz)
100

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PL607041UMG
0.042200
0.074667
24
VQFN
4x4x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
