product primary image

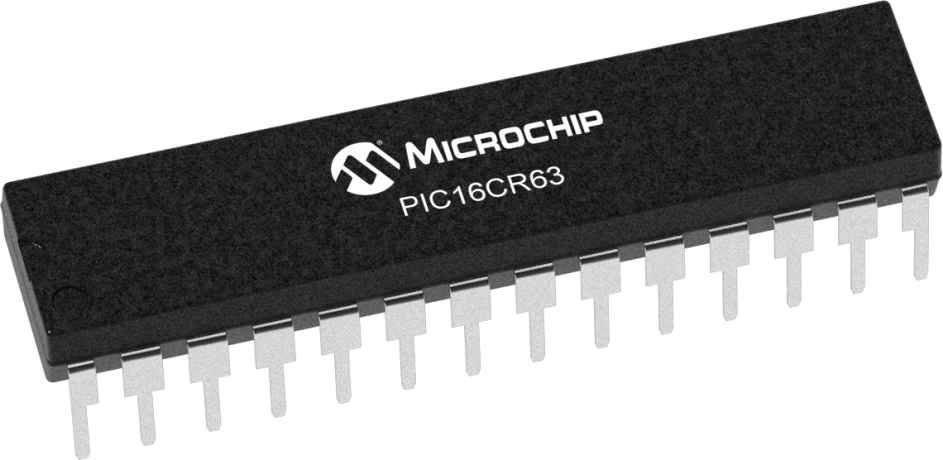

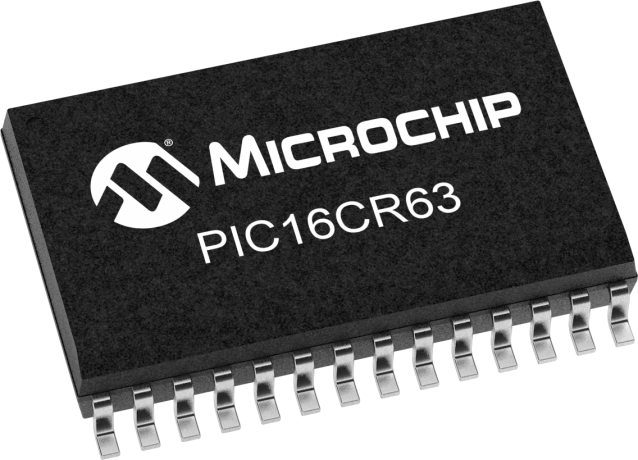

PIC16CR63

Status: Not Recommended for new designs

Features:

  • ROM: 4096x14 2 PWM 10-bit Max. Speed: 20MHz 2 Capture/Compare
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Please consider this device PIC16F723

Additional Features
ROM: 4096x14 2 PWM 10-bit Max. Speed: 20MHz 2 Capture/Compare
Parametrics
Name
Value
Program Memory Type
ROM
Program Memory Size (KB)
7
CPU Speed (MIPS/DMIPS)
5
SRAM (KB)
192
Digital Communication Peripherals
1-UART, 1-SPI, 1-I2C1-SSP(SPI/I2C)
Capture/Compare/PWM Peripherals
2 CCP,
Timers
2 x 8-bit, 1 x 16-bit
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
2.5 to 6
Pin Count
28
