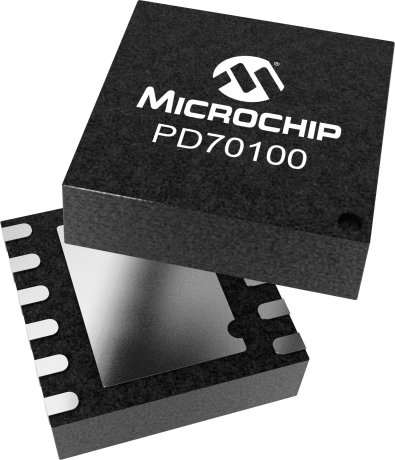

product primary image

PD70100

IEEE 802.3af, PD Front-end IC w/internal 0.6 Ohm FET

Status: In Production

Features:

  • Designed to support IEEE 802.3af Type 1 applications
  • PD detection & programmable classification signature
  • Signature resistor disconnection after detection
  • Integrated 0.6Ω isolating switch and inrush current limiter
  • Less than 10 µA offset current during detection
  • Single DC Voltage Input (37V – 57V)
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PD70100 device is a part of Microchip’s series of Power over Ethernet (PoE) Powered Devices (PDs). The device transmits integrated power and analog data in a single 12-pin package. It is  used in PDs, thus enabling next generation network devices to share power and data over the same cable. Microchip’s PD70100 is optimized for PD applications compliant with IEEE 802.3af Type 1 standards. The IC family’s components can be used in both indoor and outdoor applications.

The device family meets all PD-side-standards such as:
• Detection
• Classification
• Integrated isolation switch with inrush current limiter, and over-current protection

In addition, the devices have a discharge mechanism for a DC / DC input capacitor, ensuring quick re-detection capability in case the RJ-45 plug is disconnected and reconnected within a short time span.

Start your PoE PD power supply design using Microchip MPLAB® Analog Designer.

Additional Features
  • Designed to support IEEE 802.3af Type 1 applications
  • PD detection & programmable classification signature
  • Signature resistor disconnection after detection
  • Integrated 0.6Ω isolating switch and inrush current limiter
  • Less than 10 µA offset current during detection
  • Single DC Voltage Input (37V – 57V)
  • Wide operating temperature range: −40°C to 85°C
  • On-chip thermal protection
  • 12-pin, 3 × 4mm DFN
  • MSL3, RoHS compliant
Parametrics
Name
Value
Product Type
PD IC
Standards Supported
IEEE 802.3af
IC Type
PD front end
POE Type
AF Type 1
PoE Class
1-3
Output Power
15.4W
Maximum Current
0.45A
Maximum Channel Resistance
0.6 Ohm
Operating Temperature (C)
–40 to 85
Temperature Grade
Industrial

Documents

Jump to:

Data Sheets

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
IEEE802.3af/bt Type 1 PD EVB featuring PD70100 w/3 output voltages
IEEE802.3af/bt Type 1 PD EVB featuring PD70100 w/3 output voltages ( PD70100EVB15B )

The PD70100EVB15B evaluation board provides designers with the needed environment to evaluate the performance and implementation of PD applications based on PD70100 PDchip. The evaluation board enables PD designers to evaluate Microchip's PDchip solution.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD70100ILD-TR
0.000000
0.000000
12
VDFN
4x3x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
