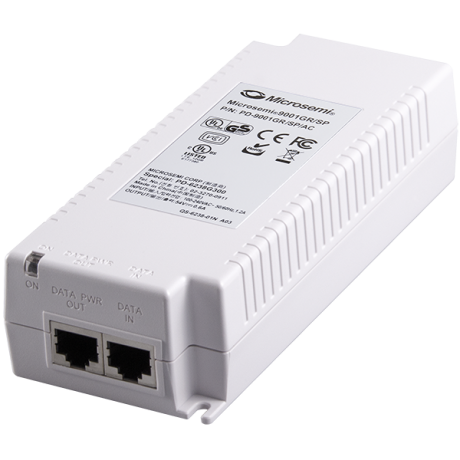

product primary image

PD-9001GR/SP

1 port, 30W, IEEE 802.3at, indoor PoE midspan

Status: In Production

Features:

  • Number of ports: 1
  • PoE output: 30W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Input power: 100-240 VAC
  • Output power: 55 VDC
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power applications. The PD-9001GR/SP provides surge protection functionality optimal for the installation of outdoor PDs. The midspan enables remote power for a new range of applications including 802.11n access points, pan-tilt-zoom (PTZ) cameras, and video-phones. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100 Base-T network devices and emerging wireless 1000 Base-T devices such as WiMAX and wireless IEEE 802.11n access points.

Additional Features
  • Number of ports: 1
  • PoE output: 30W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Input power: 100-240 VAC
  • Output power: 55 VDC
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • Surge protection: EN 61000-4-5 (10/700 µsec, 4 KV), IEC-61643-21, GR-1089-CORE lightning protection demands, ITU-T K.45 international standard
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
  • Safety: UL/cUL Per IEC 60950-1, GS Mark Per IEC 60950-1
  • Compact design
Parametrics
Name
Value
Product Type
30W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3at
Power Per Port
30W
Operating Environment
Indoor
Number of Ports
1
Data Rate
1 Gbps
Input Power
AC
Operating Humidity (%)
90
Operating Temperature (°C)
-10 to 50
Warranty (Years)
1

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-9001GR/SP/AC
315.0000
475.0000
N/A
N/A
600x223x166mm
N/A
N/A
PD-9001GR/SP/AC-AU
400.0000
560.0000
N/A
N/A
600x223x166mm
N/A
N/A
PD-9001GR/SP/AC-EU
400.0000
560.0000
N/A
N/A
600x223x166mm
N/A
N/A
PD-9001GR/SP/AC-JP
400.0000
560.0000
N/A
N/A
600x223x166mm
N/A
N/A
PD-9001GR/SP/AC-UK
400.0000
560.0000
N/A
N/A
600x223x166mm
N/A
N/A
PD-9001GR/SP/AC-US
400.0000
560.0000
N/A
N/A
600x223x166mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
