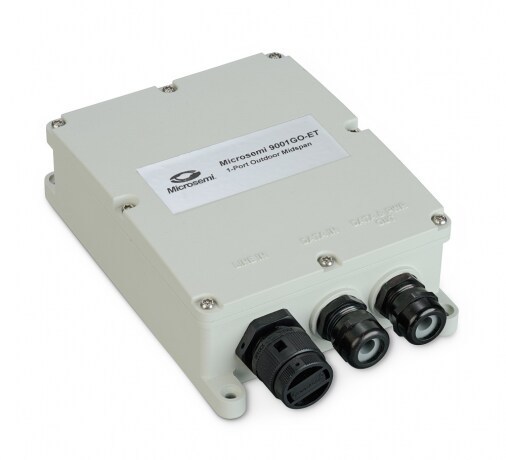

product primary image

PD-9001GO

1 port , 30W, IEEE 802.3at-compliant outdoor PoE midspan with surge protection and extended temperature range

Status: In Production

Features:

  • Number of ports: 1
  • PoE output: 30W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC or DC
  • Outdoor rated: IP66 or IP67
  • Extended temperature range
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The single port PoE midspans, PD-9001GO-ET and PD-9001GO/48VDC provide up to 30 Watts of power over Ethernet and offer a IEEE 802.3at-compliant solution for outdoor installations, ensuring safe and reliable operation of any standard PoE data terminal in outdoor environments. The midspans allow wireless LAN access points, security network cameras, and other IP terminals to receive power and data over standard Ethernet cables, leaving network infrastructure completely unaltered. They also offer surge protection for both the AC and the PoE ports, ensuring the indoor equipment is protected from outdoor surges.



Additional Features
  • Number of ports: 1
  • PoE output: 30W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC or DC
  • Outdoor rated: IP66 or IP67
  • Extended temperature range
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024, EN61000-4-5 Class 5, (6 kV CM/DM), VCCI
  • Safety: UL/IEC/EN 60950-1, UL60950-22
  • Other standards: Dustproof and water resistance: EN60529, approvals level IP67; NEMA 250, level 4X ASTM B-117 corrosion resistance
  • Compact design
Parametrics
Name
Value
Product Type
30W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3at
Power Per Port
30W
Operating Environment
Outdoor
Number of Ports
1
Data Rate
1 Gbps
Input Power
AC or DC
Operating Humidity (%)
90
Operating Temperature (°C)
-40 to 65
Warranty (Years)
5

Documents

Jump to:

Data Sheets


585KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-9001GO/12-24VDC
780.0000
1250.000
N/A
N/A
504x300x250mm
N/A
N/A
PD-9001GO/48VDC
780.0000
1250.000
N/A
N/A
504x300x250mm
N/A
N/A
PD-9001GO/AC-INTL
1140.000
1550.000
N/A
N/A
504x300x250mm
N/A
N/A
PD-9001GO/AC-NA
1200.000
1550.000
N/A
N/A
504x300x250mm
N/A
N/A
PD-9001GO/LL/AC-IN
1140.000
1550.000
N/A
N/A
504x300x250mm
N/A
N/A
PD-9001GO/LL/AC-NA
1200.000
1250.000
N/A
N/A
504x300x250mm
N/A
N/A
PD-9001GO-ET/AC
1560.000
1900.000
N/A
N/A
448x308x197mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
