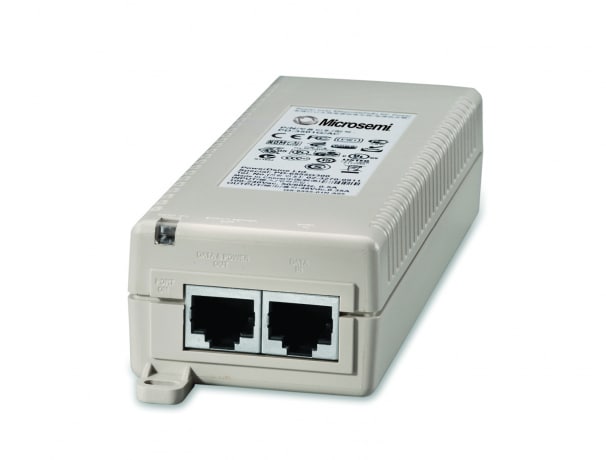

PD-3501G

1port, 15.4W,IEEE 802.3af indoor PoE midspan

Status: In Production

Features:

  • Number of ports: 1
  • PoE output: 15.4W
  • Data rates: 10/100/1000 Mbps
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3af(PoE), RoHS Compliant,WEEE Compliant, CE
  • EMI: FCC Part 15, Class BEN 55032 Class B (Emissions)EN 55024 (Immunity)VCC
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The single port PoE midspan offers a compact and cost effective, IEEE 802.3af compliant solution for powering IP phones, WLAN access points, network cameras and other IP terminal devices.The compact and affordable PD-3501G provides reliable power over standard Ethernet cables, leaving existing network infrastructure completely unaltered.With plug-and-play installation, the PD-3501G can be easily and cost effectively implemented leveraging the existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.

Additional Features
  • Number of ports: 1
  • PoE output: 15.4W
  • Data rates: 10/100/1000 Mbps
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3af(PoE), RoHS Compliant,WEEE Compliant, CE
  • EMI: FCC Part 15, Class BEN 55032 Class B (Emissions)EN 55024 (Immunity)VCC
  • Safety: UL/EN/IEC60950-1(Ed.2)
  • Compact design
Parametrics
Name
Value
Product Type
15.4W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3af
Power Per Port
15.4W
Operating Environment
Indoor
Number of Ports
1
Data Rate
1 Gbps
Input Power
AC
Operating Humidity (%)
90
Operating Temperature (°C)
0 to 40
Warranty (Years)
1

Documents

Jump to:

Data Sheets

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-3501G/AC
176.0000
10.66900
N/A
N/A
417x305x240mm
N/A
N/A
PD-3501G/AC-AUS
176.0000
8.668000
N/A
N/A
495x230x320mm
N/A
N/A
PD-3501G/AC-BR
176.0000
8.608000
N/A
N/A
495x230x320mm
N/A
N/A
PD-3501G/AC-CN
176.0000
8.448000
N/A
N/A
495x230x320mm
N/A
N/A
PD-3501G/AC-EU
176.0000
8.908000
N/A
N/A
495x230x320mm
N/A
N/A
PD-3501G/AC-JP
176.0000
8.608000
N/A
N/A
495x230x320mm
N/A
N/A
PD-3501G/AC-NC
176.0000
5.608000
N/A
N/A
495x230x320mm
N/A
N/A
PD-3501G/AC-TW
176.0000
8.608000
N/A
N/A
495x230x320mm
N/A
N/A
PD-3501G/AC-UK
176.0000
9.228000
N/A
N/A
495x230x320mm
N/A
N/A
PD-3501G/AC-US
176.0000
8.408000
N/A
N/A
495x230x320mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
