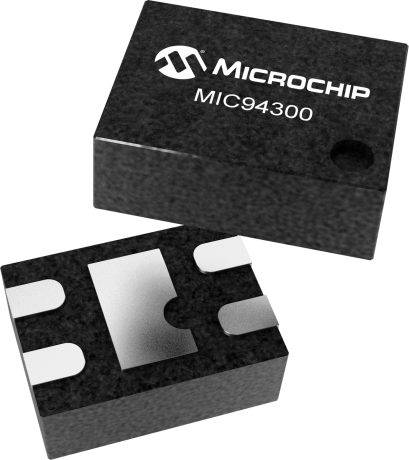

product primary image

MIC94300

200mA Ripple Blocker, Voltage Follower

Status: In Production

Features:

  • 1.8V to 3.6V input voltage range
  • Active noise rejection over a wide frequency band: >60dB from 40kHz to 5MHz
  • Rated to 200mA output current
  • Logic Controlled enable pin
  • Current-limit and thermal-limit protected
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC94300 is an integrated load switch that incorporates Ripple Blocker™ active filter technology. The MIC94300 provides high-frequency ripple attenuation (switching noise rejection) for applications where a switching noise cannot be tolerated by sensitive downstream circuits such as in RF applications. A low-voltage logic enable pin disconnects the pass element and places the MIC94300 into a low current-shutdown state when disabled.

The MIC94300 operates from an input voltage of 1.8V to 3.6V, allowing true load switching of low-voltage power rails in any electronic device. The output voltage (VOUT) is set at a fixed drop (typically 170mV) from the input voltage (VOUT = VIN– 170mV). This maintains high efficiency independent of given load conditions and currents.

Additional Features
    • 1.8V to 3.6V input voltage range
    • Active noise rejection over a wide frequency band: >60dB from 40kHz to 5MHz
    • Rated to 200mA output current
    • Logic Controlled enable pin
    • Current-limit and thermal-limit protected
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Product Type
Single LDOs/Ripple blocker
# of Out
1
IOUT #1
200
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
200
VIN Min (V)
1.8
VIN Max (V)
3.6
VOUT (V)
Input Follower
Voltage Drop Typ (mV)
170
IGND Typ (µA)
138
Tol Typ %
Noise (µV) rms
98
PSRR 1 kHz (dB)
60
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheets

11/09/2015
510KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC94300YCS-TR
0.306667
4
WLCSP
0.88x0.88x0.58mm
SAC
e8
MIC94300YMT-T5
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC94300YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
