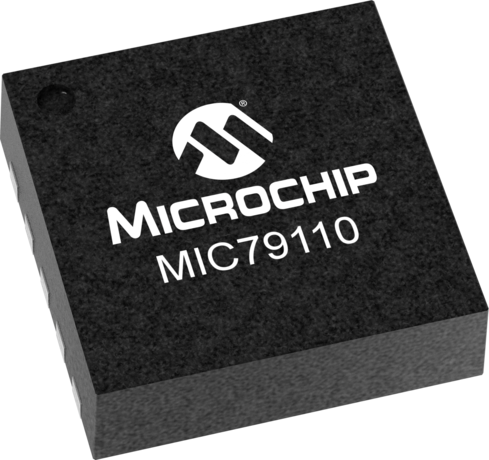

MIC79110

Simple 1.2A Linear Lithium-Ion Battery

Status: In Production

Features:

  • Input voltage range: 2.5V to 16V
  • High output voltage accuracy of ±0.75% over -5°C to +60°C
  • Current Limit ±5% accurate from -5°C <= Tj <= + 125°C
  • Programmable end-of-charge flag
  • Analog output proportional to output current
  • Adjustable and fixed 4.2V output
  • Low dropout voltage of 550mV at 700mA load, over temperature
  • 1.2A output current
  • Excellent line and load regulation specifications
  • Reverse current and protection
  • Thermal shutdown and current limit protection
  • Tiny 10-pin 3mm x 3mm MLF®package
  • Junction temperature range: -40°C to +125°C
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Micrel MIC79110 is a simple and accurate lithium ion battery charger. Featuring a built-in pass transistor, precision programmable current limiting (±5%), and precision voltage termination (±0.75% over temperature) all in a very small package, the MIC79110 packs full functionality into a small space. Other features of the MIC79110 include two independent end-of-charge indications, including a digital indication that is programmable with a resistor-to-ground and an analog current output that is proportional to the output current, allowing for monitoring of the actual charging current. Additional features include very low dropout (550mV over the temperature range), thermal shutdown, and reverse polarity protection. In the event the input voltage to the charger is disconnected, the MIC79110 also provides minimal reverse-current and reversed-battery protection. Available in both fixed 4.2V and adjustable outputs, the MIC79110 is offered in the leadless 10-pin 3mm x 3mm MLF® with an operating junction temperature range of -40°C to +125°C.

Additional Features
    • Input voltage range: 2.5V to 16V
    • High output voltage accuracy of ±0.75% over -5°C to +60°C
    • Current Limit ±5% accurate from -5°C <= Tj <= + 125°C
    • Programmable end-of-charge flag
    • Analog output proportional to output current
    • Adjustable and fixed 4.2V output
    • Low dropout voltage of 550mV at 700mA load, over temperature
    • 1.2A output current
    • Excellent line and load regulation specifications
    • Reverse current and protection
    • Thermal shutdown and current limit protection
    • Tiny 10-pin 3mm x 3mm MLF®package
    • Junction temperature range: -40°C to +125°C
Parametrics
Name
Value
Linear Mode
Yes
# of Cells
1
Int/Ext FET
Yes
Vcc Range (V)
2.5 to 16
Voltage Regulation Accuracy (%)
0.75

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC79110YML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC79110-4.2YML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
