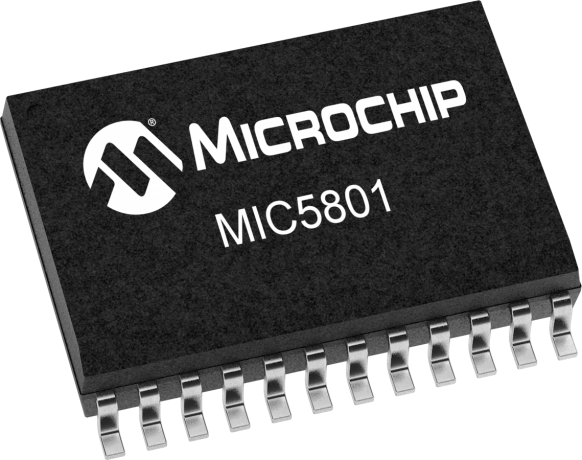

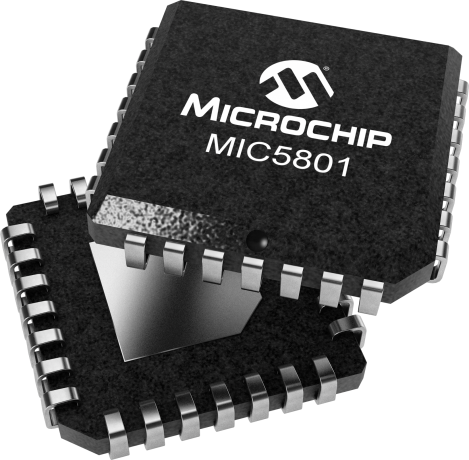

product primary image

MIC5801

8-Bit Parallel-in Latched Driver

Status: In Production

Features:

  • 4.4MHz minimum data input rate
  • High-voltage, current sink outputs
  • Output transient protection
  • CMOS, PMOS, NMOS, and TTL-compatible inputs
  • Internal pull-down resistors
  • Low-power CMOS latches
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MIC5800/5801 latched drivers are high-voltage, high-current integrated circuits comprised of four or eight CMOS data latches, a bipolar Darlington transistor driver for each latch, and CMOS control circuitry for the common CLEAR, STROBE, and OUTPUT ENABLE functions. The bipolar/MOS combination provides an extremely low-power latch with maximum interface flexibility. MIC5800 contains four latched drivers; MIC5801 contains eight latched drivers. Data input rates are greatly improved in these devices. With a 5V supply, they will typically operate at better than 5MHz. With a 12V supply, significantly higher speeds are obtained. The CMOS inputs are compatible with standard CMOS, PMOS, and NMOS circuits. TTL or DTL circuits may require the use of appropriate pull-up resistors. The bipolar outputs are suitable for use with relays, solenoids, stepping motors, LED or incandescent displays, and other high-power loads. Both units have open-collector outputs and integral diodes for inductive load transient suppression. The output transistors are capable of sinking 500mA and will sustain at least 50V in the OFF state. Because of limitations on package power dissipation, the simultaneous operation of all drivers at maximum rated current can only be accomplished by a reduction in duty cycle. Outputs may be paralleled for higher load current capability.

Additional Features
    • 4.4MHz minimum data input rate
    • High-voltage, current sink outputs
    • Output transient protection
    • CMOS, PMOS, NMOS, and TTL-compatible inputs
    • Internal pull-down resistors
    • Low-power CMOS latches
Parametrics
Name
Value
Type
Sink
Output Channels
8
Vout (V) operating – Transient
50
Vout (V) Operating - Sustained
50
Iout (mA) per Channel
500
Output Structure
Darlington Open Collector
Input Structure
Parallel
Minimum Data Clock (MHz)
--
General Description
8-Bit Parallel-in Latched Driver
Package
24/SOIC 300mil 28/PLCC

Documents

Jump to:

Data Sheet

04/03/2019
775KB

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$14.46
$10.08
$2.51
$3.51
$2.25
$3.81
$3.51
$3.33
$3.33
$4.00
$5.51
$4.45
$4.00
$5.51
$4.45
$6.71
$8.76
$6.07
$6.67
$1.60
$11.95
$8.45
$2.06
$1.49
$7.11
$8.52
$13.48
$3.00
$3.00
$3.00
$1.09
$0.84
$1.67
$1.39
$1.17
$1.49
$1.50
$1.07
$3.39
$3.11
$3.24
$3.30

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5801YV
1.142500
0.435897
28
PLCC
11.5x11.5x4.4mm
Matte Tin
e3
MIC5801YV-TR
1.142500
1.733333
28
PLCC
11.5x11.5x4.4mm
Matte Tin
e3
MIC5801YWM
0.662000
1.645161
24
SOIC
.300in
Matte Tin
e3
MIC5801YWM-TR
0.662000
1.000000
24
SOIC
.300in
Matte Tin
e3
MIC5801BWM
1.225807
24
SOIC
.300in
SnPb
e0
MIC5801BWM-TR
1.000000
24
SOIC
.300in
SnPb
e0
MIC5801YN
0.000000
22
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
