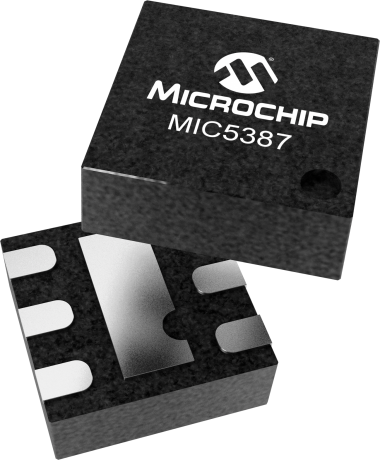

product primary image

MIC5387

Ultra Small Triple 150mA Output LDO

Status: In Production

Features:

  • Input voltage range: 2.5V to 5.5V
  • 150mA guaranteed output current for each output
  • Stable with ceramic output capacitors
  • Low dropout voltage: 180mV @ 150mA
  • Excellent Load/Line Transient Response
  • Low quiescent current: 32µA per LDO
  • High PSRR: 70dB
  • High output accuracy
  • ±2% initial accuracy
  • Thermal-shutdown and current-limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5387 is capable of 150mA from each output and offers high PSRR, making it an ideal solution for any portable electronic application. Ideal for battery powered applications, the MIC5387 offers 2% initial accuracy, low dropout voltage (180mV @ 150mA), and low ground current (typically 32µA per output).

The MIC5387 has an operating junction temperature range of -40°C to +125°C.

Additional Features
    • Input voltage range: 2.5V to 5.5V
    • 150mA guaranteed output current for each output
    • Stable with ceramic output capacitors
    • Low dropout voltage: 180mV @ 150mA
    • Excellent Load/Line Transient Response
    • Low quiescent current: 32µA per LDO
    • High PSRR: 70dB
    • High output accuracy
      • ±2% initial accuracy
    • Thermal-shutdown and current-limit protection



Parametrics
Name
Value
Product Type
Multi-Channel LDOs
# of Out
3
IOUT #1
150
IOUT #2
150
IOUT #3
150
IOUT #4
n/a
IOUT (mA)
150
VIN Min (V)
2.5
VIN Max (V)
5.5
VOUT (V)
1.8/2.8/1.8, 1.8/2.8/2.8, 3.3/1.8/1.2, 3.3/1.8/1.5
Voltage Drop Typ (mV)
180
IGND Typ (µA)
32
Tol Typ %
±2
Noise (µV) rms
200
PSRR 1 kHz (dB)
70
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:
×

Data Sheet

MIC5387 - Ultra Small Triple 150mA Output LDO
11/05/2015
542KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MIC5387-GMMYMT Evaluation Board
MIC5387-GMMYMT Evaluation Board ( MIC5387-GMMYMT-EV )
(Not Recommended for new design)

The MIC5387 is an advanced, general purpose tripleoutput, linear regulator offering high power supply rejection (PSRR). The MIC5387 is capable of 150mA from each output and offers high PSRR, making it an ideal solution for any portable electronic application.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5387-GMGYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5387-SGFYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5387-SG4YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5387-GMMYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
