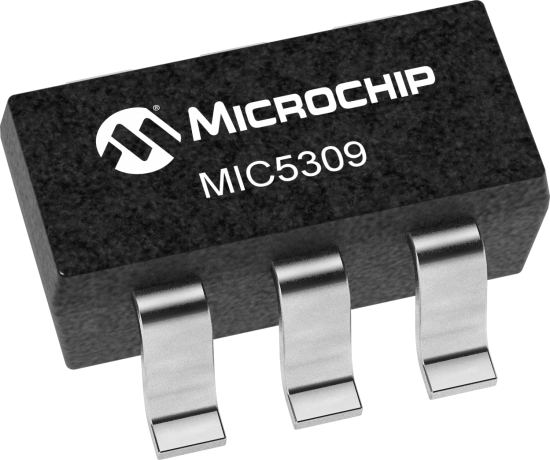

product primary image

MIC5309

Low Vin/Vout, Low Iq 300mA High PSRR ULDO

Status: In Production

Features:

  • Input voltage range: 1.7V to 5.5V
  • Guaranteed 300mA over temperature
  • Ultra-low dropout voltage: 100mV for typical 300mA load
  • High PSRR: up to 90dB at 1kHz
  • Output Voltage range: 0.8V to 2.0V
  • Very low ground current: 23µA under full load
  • Bias supply voltage range: 2.5V to 5.5V
  • Stable with 1µF ceramic output capacitor
  • 300mA maximum output current at 1.7V input voltage
  • Very fast transient response ideal for digital loads
  • Thermal shutdown and current limit protection
  • Cost effective 6-pin TSOT-23 package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5309 is a high performance, µCap low dropout regulator that offers ultra-low operating current while maintaining very fast transient response. The MIC5309 can source up to 300mA of output current and can regulate down from a low input supply voltage to increase system efficiency.

Ideal for battery-operated applications; the MIC5309 offers extremely low dropout voltage (100mV typically at 300mA load) and low ground current at all load conditions (typically 23µA). The MIC5309 can also be put into a zero off-mode current state, drawing virtually no current when disabled.

Additional Features
    • Input voltage range: 1.7V to 5.5V
    • Guaranteed 300mA over temperature
    • Ultra-low dropout voltage: 100mV for typical 300mA load
    • High PSRR: up to 90dB at 1kHz
    • Output Voltage range: 0.8V to 2.0V
    • Very low ground current: 23µA under full load
    • Bias supply voltage range: 2.5V to 5.5V
    • Stable with 1µF ceramic output capacitor
    • 300mA maximum output current at 1.7V input voltage
    • Very fast transient response ideal for digital loads
    • Thermal shutdown and current limit protection
    • Cost effective 6-pin TSOT-23 package
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
IOUT #2
IOUT #3
IOUT #4
IOUT (mA)
300
VIN Min (V)
1.7
VIN Max (V)
5.5
VOUT (V)
1.2, 1.5, 1.8, Adj
Voltage Drop Typ (mV)
100
IGND Typ (µA)
23
Tol Typ %
±2
Noise (µV) rms
28
PSRR 1 kHz (dB)
90
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheet

11/05/2015
349KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5309-1.5YD6-TR
0.149600
6
TSOT
2.9x1.6x1.0mm
NiPdAu
e4
MIC5309-1.8YD6-TR
0.149600
6
TSOT
2.9x1.6x1.0mm
NiPdAu
e4
MIC5309YD6-TR
0.149600
6
TSOT
2.9x1.6x1.0mm
NiPdAu
e4
MIC5309-1.2YD6-TR
0.149600
6
TSOT
2.9x1.6x1.0mm
NiPdAu
e4
MIC5309-1.2YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5309-1.5YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5309-1.8YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5309YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
