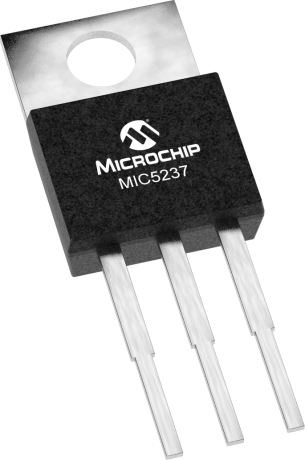

product primary image

MIC5237

500mA 3% Accuracy LDO, Improved LM2937

Status: In Production

Features:

  • Guaranteed 500mA output over the full operating temperature range
  • Low 300mV typical dropout voltage at full load
  • Extremely tight load and line regulation
  • Current and thermal limiting
  • Reversed battery protection
  • TO-220 and TO-263 packages
  • Low temperature coefficient
  • No-load stability
  • Low noise output
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5237 is a general purpose low-dropout regulator capable of 500mA output current with better than 3% output voltage accuracy. Using proprietary Superβeta PNP® process with a PNP pass element, these regulators feature less than 300mV dropout voltage and typically 8mA ground current at full load.

Designed for applications that require moderate current over a broad input voltage range, including handheld and battery-powered devices, the MIC5237 is intended for applications that can tolerate moderate voltage drop at higher current.

Key features include low ground current to help prolong battery life, reversed battery protection, current limiting, over-temperature shutdown, and thermally efficient packaging. The MIC5237 is available in fixed output voltages only.

For space-critical applications and improved performance, see the MIC5209 and MIC5219. For output current requirements up to 750mA, see the MIC2937.

Additional Features
    • Guaranteed 500mA output over the full operating temperature range
    • Low 300mV typical dropout voltage at full load
    • Extremely tight load and line regulation
    • Current and thermal limiting
    • Reversed battery protection
    • TO-220 and TO-263 packages
    • Low temperature coefficient
    • No-load stability
    • Low noise output
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
500
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
500
VIN Min (V)
2.5
VIN Max (V)
16
VOUT (V)
2.5, 3.3, 5.0
Voltage Drop Typ (mV)
300
IGND Typ (µA)
80
Tol Typ %
±3
PSRR 1 kHz (dB)
75
Soft Start Pin
Load Dump
Rev Bat
Yes
Reverse Current Protect

Documents

Jump to:

Data Sheet

10/23/2018
680KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5237-5.0YT
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
MIC5237-2.5YU
1.511000
2.360000
3
TO-263
-
Matte Tin
e3
MIC5237-3.3YU-TR
1.511000
2.506667
3
TO-263
-
Matte Tin
e3
MIC5237-2.5YU-TR
1.511000
2.506667
3
TO-263
-
Matte Tin
e3
MIC5237-5.0YU
1.511000
2.360000
3
TO-263
-
Matte Tin
e3
MIC5237-3.3YU
1.511000
2.360000
3
TO-263
-
Matte Tin
e3
MIC5237-5.0YU-TR
1.511000
2.506667
3
TO-263
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
