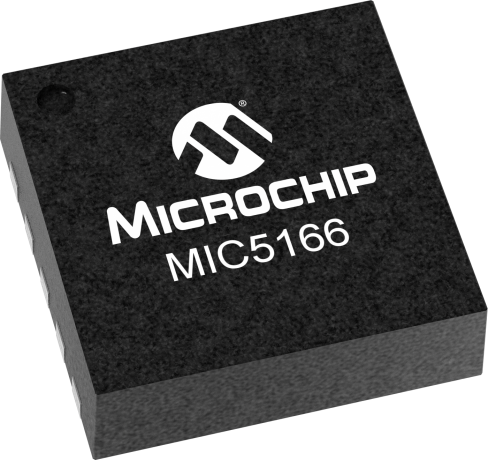

product primary image

MIC5166

3A DDR Memory and High-Speed Bus Terminator

Status: In Production

Features:

  • Operating voltage range:
  • VDDQ Supply: 0.9V to 3.6V
  • Bias Supply:  2.5V to 5.5V
  • High bandwidth – very fast transient response
  • Stable with two 10µF ceramic output capacitors
  • Two 10µF output capacitors used in most applications
  • High output voltage accuracy:
  • 0.015% line regulation
  • 1.5% load regulation
  • Logic level enable input
  • Power Good (PG)
  • Junction temperature range –40°C to +125°C
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC5166 is a 3A, high-speed, linear, low VIN, double data rate (DDR), memory terminator power supply. The part is small and requires small output capacitors making it a tiny overall solution. This allows it to be conveniently placed close to the DDR memory, minimizing circuit board layout inductance which may cause excessive voltage ripple at the DDR memory. The MIC5166 contains a precision voltage divider network in order to take in the VDDQ voltage as a reference voltage and conveniently output the terminator voltage (VTT) at one half of the VDDQ input voltage. The MIC5166 is capable of sinking and sourcing up to 3A. It is stable with only two 10µF ceramic output capacitors. The MIC5166 has a high-side NMOS output stage offering very low output impedance, and very high bandwidth. The NMOS output stage offers a unique ability to respond very quickly to sudden load changes such as is required for DDR memory termination power supply applications.

Additional Features
    • Operating voltage range:
      • VDDQ Supply: 0.9V to 3.6V
      • Bias Supply:  2.5V to 5.5V
    • High bandwidth – very fast transient response
    • Stable with two 10µF ceramic output capacitors
    • Two 10µF output capacitors used in most applications
    • High output voltage accuracy:
      • 0.015% line regulation
      • 1.5% load regulation
    • Logic level enable input
    • Power Good (PG)
    • Junction temperature range –40°C to +125°C
Parametrics
Name
Value
Linear
Yes
MAX IOUT (A)
±3
VIN Min (V)
0.9
VIN Max (V)
3.6
VOUT (V)
1/2 of VDDQ
PWR Good
Yes
VTT Accuracy (mV)
±40
Ceramic Cout "µCaP"
Yes
llim Typ (A)
4.9
llim Max (A)
7.8
VEN (V)
1.2
Θja (C/W)
60.7

Documents

Jump to:

Data Sheets

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MIC5166YML Evaluation Board
MIC5166YML Evaluation Board ( MIC5166YML-EV )

This evaluation board is used to demonstrate the MIC5166. The MIC5166 is a ±3A, high-speed, linear, low input voltage, Double Data Rate (DDR) or Quad Data Rate (QDR), memory terminator power supply. The MIC5166 has two internal N-channel power MOSFETs, forming a linear regulator that can both sink and source current. This regulator design is used for DDR or QDR termination.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5166YML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
