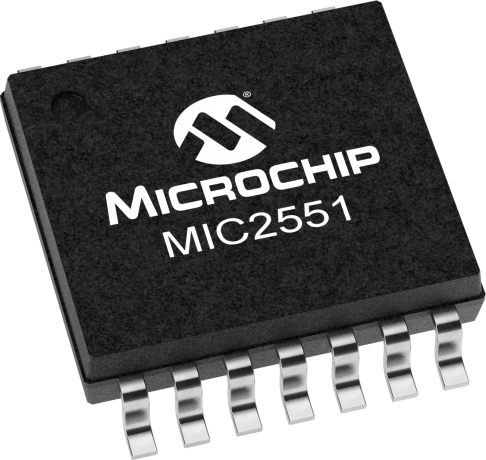

product primary image

MIC2551

Universal Serial Bus Transceiver

Status: Not Recommended for new designs

Features:

  • Compliant to USB Specification Revision 2.0 for full speed (12Mbps) and low speed (1.5Mbps) operation
  • Compliant to IEC-61000-4.2 (Level 3)
  • Separate I/O supply with operation down to 1.6V
  • Integrated speed select termination supply
  • Very-low power consumption to meet USB suspend-current requirements
  • Small TSSOP packages
  • No power supply sequencing requirements
  • Software controlled re-enumeration
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

***NOT RECOMMENDED FOR NEW DESIGNS*** The MIC2551 is a single chip transceiver that complies with the physical layer specifications of the Universal Serial Bus (USB) 2.0. It supports both full speed (12Mbps) and low speed (1.5Mbps) operation. It is also designed to operate down to 1.6V in order to be compatible with lower system voltages of most mobile systems

Please consider this device MCP2221A

Additional Features
    • Compliant to USB Specification Revision 2.0 for full speed (12Mbps) and low speed (1.5Mbps) operation
    • Compliant to IEC-61000-4.2 (Level 3)
    • Separate I/O supply with operation down to 1.6V
    • Integrated speed select termination supply
    • Very-low power consumption to meet USB suspend-current requirements
    • Small TSSOP packages
    • No power supply sequencing requirements
    • Software controlled re-enumeration



























































Parametrics
Name
Value
Product Type
Universal Serial Bus Transceiver
Θja (C/W)
100, 59
supports Speeds
1.5Mbps (low) and 12Mbps (full)

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2551AYTS
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MIC2551AYTS-TR
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MIC2551YTS
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MIC2551YTS-TR
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MIC2551YML-TR
0.021300
0.801700
16
VQFN
3x3x1.00mm
NiPdAu
e4
MIC2551AYML-TR
0.021300
0.801700
16
VQFN
3x3x1.00mm
NiPdAu
e4
MIC2551AYML25-TR
0.150000
14
VQFN
2.5x2.5x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
