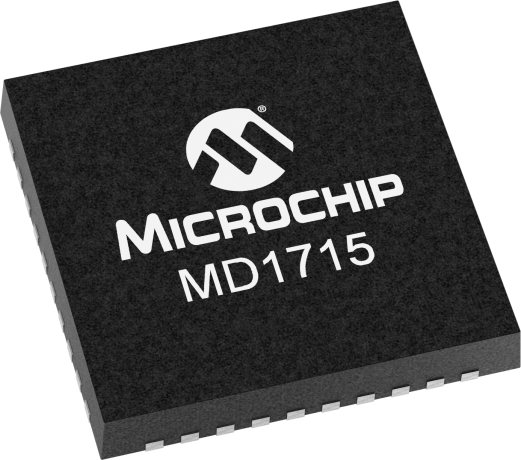

product primary image

MD1715

2-Channel, 5-LEVEL, High Speed Ultrasound Driver

Status: In Production

Features:

  • Advanced CMOS technology
  • ±4.75 to 12.9V gate drive voltage
  • 2A output source and sink current
  • 6.5ns rise and fall time with 1nF load
  • 10ns propagation delay
  • ±2ns matched delay times
  • 12 matched channels
  • 1.8V to 3.3V CMOS logic interface
  • Smart logic threshold
  • Low inductance package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

MD1715, paired with TC8020, forms a two channel, five level, high voltage, high speed transmit pulser chip set. The chip set is designed for medical ultrasound imaging applications, but can also be used for metal flaw detection, Non-Destructive Testing (NDT), and piezoelectric transducer drivers. The MD1715 is a two channel logic controller circuit with 12 low impedance MOSFET gate drivers. There are two sets of control logic inputs, one each for channels A and B. Each channel consists of three pairs of MOSFET gate drivers. These drivers are designed to match the drive requirements of TC8020. The TC8020 is the output stage of the pulser, with six pairs of MOSFETs. Each pair consists of a P-channel and an N-channel MOSFET. They are designed to have the same impedance and can provide typical peak currents of ±3.5A at 200V.

Additional Features
  • Advanced CMOS technology
  • ±4.75 to 12.9V gate drive voltage
  • 2A output source and sink current
  • 6.5ns rise and fall time with 1nF load
  • 10ns propagation delay
  • ±2ns matched delay times
  • 12 matched channels
  • 1.8V to 3.3V CMOS logic interface
  • Smart logic threshold
  • Low inductance package
Parametrics
Name
Value
# of Channels
2
Input Voltage min (V)
1.8
Input Voltage max (V)
3.6
Output Voltage Bipolar (V)
--
Output Voltage Unipolar (V)
0 - 12
Package
QFN-40

Documents

Jump to:

User Guides

06/25/2014
581KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MD1715DB2 Demo Board
MD1715DB2 Demo Board ( MD1715DB2 )

The MD1715DB2 demoboard can drive two transducers as a five-level, two channel transmitter for ultrasound and other applications. The demoboard consists of one MD1715 in a 6x6mm 40-lead QFN package driving 12 high voltage FETs in six TC8020s in one 8x8mm 56-lead QFN package. The CPLD programmable logic circuit 40MHz crystal oscillator generates accurate timing high-speed waveforms on a separate...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MD1715K6-G
0.104280
0.489796
40
VQFN
6x6x1.0mm
Matte Tin
e3
MD1715K6-G-M935
0.104280
0.299333
40
VQFN
6x6x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
