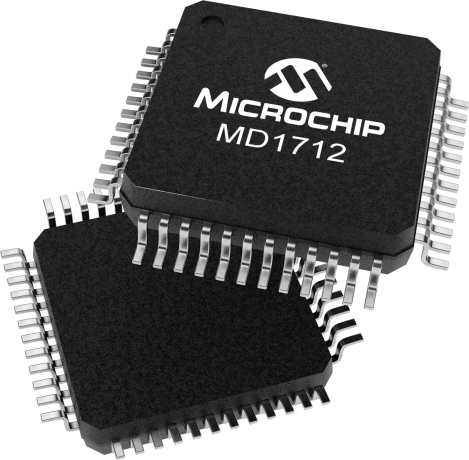

MD1712

High Speed, Integrated Ultrasound Driver IC

Status: In Production

Features:

  • Drives two ultrasound transducer channels
  • Generates five-level waveform
  • Drives 12 high voltage MOSFETs
  • ±2.0A source and sink peak current
  • Up to 20MHz output frequency
  • 12V/ns slew rate
  • ±3.0ns matched delay times
  • Second harmonic is less than -40dB
  • Two separate gate drive voltages
  • 1.8 to 3.3V CMOS logic interface
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

MD1712 is a two-channel, five-level, high voltage and high speed transmitter driver IC. It is designed for medical ultrasound imaging applications, but can also be used for metal flaw detection, Non-Destructive Testing (NDT), and for driving piezoelectric transducers. The MD1712 is a two-channel logic controller circuit with low impedance MOSFET gate drivers. There are two sets of control logic inputs, one for channel A and one for channel B. Each channel consists of three pairs of MOSFET gate drivers. These drivers are designed to match the drive requirements of TC6320. The MD1712 drives six TC6320s. Each pair consists of an N-channel and a P-channel MOSFET. They are designed to have the same impedance and can provide peak currents of over 2.0amps.

Additional Features
  • Drives two ultrasound transducer channels
  • Generates five-level waveform
  • Drives 12 high voltage MOSFETs
  • ±2.0A source and sink peak current
  • Up to 20MHz output frequency
  • 12V/ns slew rate
  • ±3.0ns matched delay times
  • Second harmonic is less than -40dB
  • Two separate gate drive voltages
  • 1.8 to 3.3V CMOS logic interface
Parametrics
Name
Value
# of Channels
12
Input Voltage min (V)
1.8
Input Voltage max (V)
5.5
Output Voltage Bipolar (V)
--
Output Voltage Unipolar (V)
0 - 12
Package
QFN-48, LQFP-48

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MD1712FG-G
0.182400
0.872000
48
LQFP
7x7x1.4mm
Matte Tin
e3
MD1712K6-G
0.130000
0.769231
48
VQFN
7x7x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
