MD1711

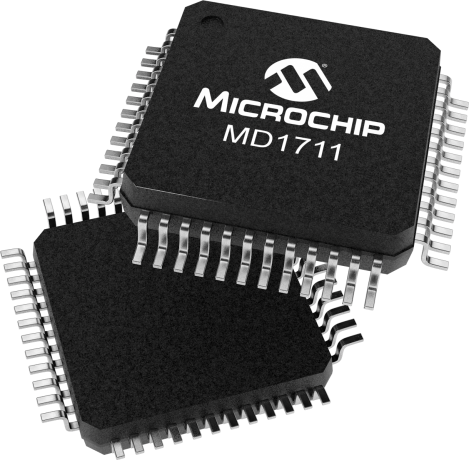

MOSFET, High Speed, Integrated Ultrasound Driver

Status: In Production

Features:

  • Drives two ultrasound transducer channels
  • Generates 5-level waveform
  • Drives 12 high voltage MOSFETs
  • ±2.0A source and sink peak current
  • Up to 20MHz output frequency
  • 12V/ns slew rate
  • ±3ns matched delay times
  • Second harmonic is less than -40dB
  • Two separate gate drive voltages
  • 1.8 to 3.3V CMOS logic interface
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

MD1711 is an IC for a two-channel, 5-level, high voltage and high speed transmitter driver. It is designed for medical ultrasound imaging applications, but can also be used for metal flaw detection, Non-Destructive Testing (NDT), and for driving piezoelectric transducers. The MD1711 is a two-channel logic controller circuit with low impedance MOSFET gate drivers. There are two sets of control logic inputs, one for channel A and one for channel B. Each channel consists of three pairs of MOSFET gate drivers. These drivers are designed to match the drive requirements of TC6320. The MD1711 drives six TC6320s. Each pair consists of an N-channel and a P-channel MOSFET. They are designed to have the same impedance and can provide peak currents of over 2.0amps.

Additional Features
  • Drives two ultrasound transducer channels
  • Generates 5-level waveform
  • Drives 12 high voltage MOSFETs
  • ±2.0A source and sink peak current
  • Up to 20MHz output frequency
  • 12V/ns slew rate
  • ±3ns matched delay times
  • Second harmonic is less than -40dB
  • Two separate gate drive voltages
  • 1.8 to 3.3V CMOS logic interface
Parametrics
Name
Value
# of Channels
12
Input Voltage min (V)
1.8
Input Voltage max (V)
5.5
Output Voltage Bipolar (V)
--
Output Voltage Unipolar (V)
0 - 12
Package
QFN-48, LQFP-48

Documents

Jump to:

User Guides

06/25/2014
440KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MD1711DB2 Demo Board
MD1711DB2 Demo Board ( MD1711DB2 )

The MD1711DB2 demoboard is as a five-level, dual-channel, +/-100V, 2.0A, return-to-zero pulser. It can directly drive two 50 or 75Ω impedance transducers for 1.0MHz to 20MHz medical ultrasound imaging or NDT applications.

The MD1711DB2 consists of one MD1711 in a 48-Lead LQFP package driving six TC6320 complementary high voltage MOSFET pairs in 8-Lead SOIC packages. The...
