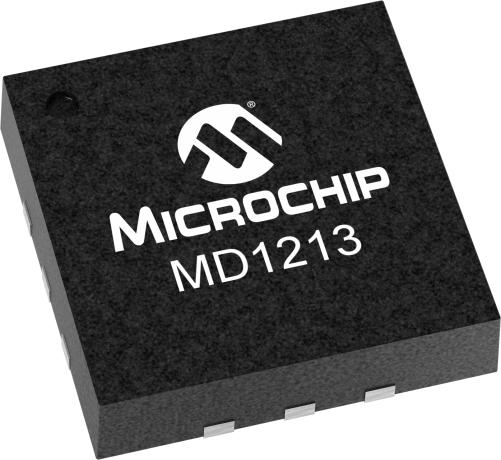

product primary image

MD1213

High Speed Dual MOSFET Driver

Status: In Production

Features:

  • 6.0ns rise and fall time with 1000pF load
  • 2.0A peak output source/sink current
  • 1.8 to 5.0V input CMOS compatible
  • 4.5 to 13V total supply voltage
  • Smart logic threshold
  • Low jitter design
  • Two matched channels
  • Outputs can swing below ground
  • Low inductance package
  • Thermally-enhanced package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

MD1213 is a high speed, dual MOSFET driver. It is designed to drive high voltage P and N-channel MOSFET transistors for medical ultrasound and other applications requiring a high output current for a capacitive load. The high-speed input stage of the MD1213 can operate from 1.8 to 5.0V logic interface with an optimum operating input signal range of 1.8 to 3.3V. An adaptive threshold circuit is used to set the level translator switch threshold to the average of the input logic 0 and logic 1 levels. The input logic levels may be ground referenced, even though the driver is putting out bipolar signals. The level translator uses a proprietary circuit, which provides DC coupling together with high-speed operation. The output stage of the MD1213 has separate power connections enabling the output signal L and H levels to be chosen independently from the supply voltages used for the majority of the circuit. As an example, the input logic levels may be 0 and 1.8V, the control logic may be powered by +5.0 to -5.0V, and the output L and H levels may be varied anywhere over the range of -5.0 to +5.0V. The output stage is capable of peak currents of up to ±2.0A, depending on the supply voltages used and load capacitance present. The OE pin serves a dual purpose. First, its logic H level is used to compute the threshold voltage level for the channel input level translators. Secondly, when OE is low, the outputs are disabled, with the A output high and the B output low. This assists in properly pre-charging the AC coupling capacitors that may be used in series in the gate drive circuit of an external PMOS and NMOS transistor pair.

Additional Features
  • 6.0ns rise and fall time with 1000pF load
  • 2.0A peak output source/sink current
  • 1.8 to 5.0V input CMOS compatible
  • 4.5 to 13V total supply voltage
  • Smart logic threshold
  • Low jitter design
  • Two matched channels
  • Outputs can swing below ground
  • Low inductance package
  • Thermally-enhanced package
Parametrics
Name
Value
# of Channels
2
Input Voltage min (V)
1.2
Input Voltage max (V)
5
Output Voltage Bipolar (V)
±5.0
Output Voltage Unipolar (V)
0 - 12
Package
QFN-12

Documents

Jump to:

Application Notes

Software Library

User Guides

06/25/2014
510KB

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
  • Application Examples
Demo & Evaluation Boards
MD1213DB1 Demo Board
MD1213DB1 Demo Board ( MD1213DB1 )

The MD1213DB1 can drive a transducer as a single channel transmitter for ultrasound and other applications. The demoboard consists of one MD1213 in a 12-Lead 4x4x0.9mm QFN (K6) package, combined with TC6320, an IC containing high voltage P- and N- channel FETs in a 8-Lead SOIC package.  Logic control inputs INA, INB and OE of the MD1213 are controlled via the six-pin head connector on the...

Learn More
Add To Cart
Software Libraries
Analog Simulation - MD1213

MD1213 is a high speed, dual MOSFET driver. It is designed to drive high voltage P and N-channel MOSFET transistors for medical ultrasound and other applications requiring a high output current for a...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MD1213K6-G
0.025400
0.139394
12
QFN
4x4x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
