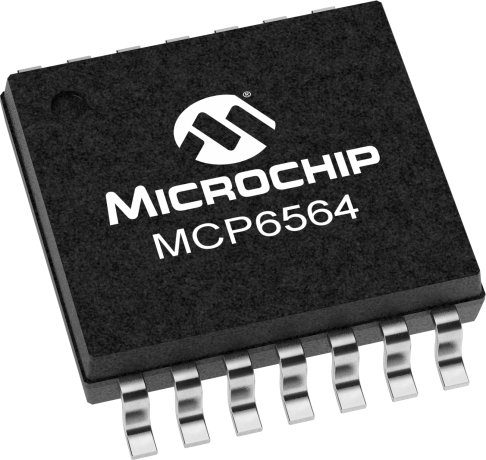

product primary image

MCP6564

Status: In Production

Features:

  • Quad, Push-Pull Outputs
  • 47ns Propogation Delay
  • Low Operating Voltage, 1.8V to 5.5V
  • Low Operating Current, 100uA (typical)
  • Rail-to-Rail Input/Output
  • Small 14-pin TSSOP Package
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

These comparators are optimized for low power, single-supply operation with greater than rail-to-rail input operation. The push-pull output of the MCP6561/2/4 family supports rail-to-rail output swing, and interfaces with TTL/CMOS logic. The output limits supply current surges, and dynamic power consumption while switching. AEC-Q100 Grade 1 qualification is available for this device

Additional Features
    • Quad, Push-Pull Outputs
    • 47ns Propogation Delay
    • Low Operating Voltage, 1.8V to 5.5V
    • Low Operating Current, 100uA (typical)
    • Rail-to-Rail Input/Output
    • Small 14-pin TSSOP Package
    • AEC-Q100 Grade 1
Parametrics
Name
Value
Temp Range (°C)
-40°C to +125°C
IQ Typical (µA))
100
Vos Max (µV)
10000
Typical Propagation Delay (ns)
47
# per Package
4
Operating Voltage Range (V)
1.8 to 5.5

Documents

Jump to:

Data Sheet

02/26/2013
1164KB

Product Line Card

Spice Model


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP6564-E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP6564T-E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6564-E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6564T-E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6564T-E/SLVAO
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
