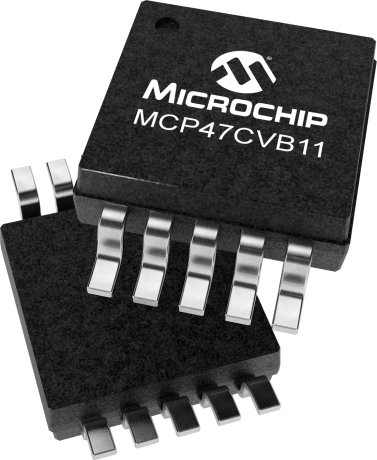

product primary image

MCP47CVB11

Mixed Signal Products

Status: In Production

Features:

  • 10-Bit Resolution
  • I²C Interface
  • Operating Voltage Range: 2.7V to 5.5V
  • 1 LSB Integral Nonlinearity (INL) Specification
  • Fast Settling Time: 16 µs (typ)
  • Power-on/Brown-out Reset (POR/BOR) Protection
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

MCP47CVB11 is a single channel, 10-bit, buffered voltage output Digital-to-Analog Converter (DAC) with volatile memory and an I²C Compatible Serial Interface. This device provides four different voltage reference options: device VDD, external VREF (Buffered or unbuffered) and internal bandgap. It offers 1 LSB Integral Non-Linearity (INL) with low power consumption and fast settling time of 6µs.  It is suitable for consumer and industrial applications, such as set point or offset trimming, sensor calibrations and motor control applications.


For different resolutions and number of output channels, please check out our other parts in the MCP47CVBxx family

Additional Features
  • 10-Bit Resolution
  • I²C Interface
  • Operating Voltage Range: 2.7V to 5.5V
  • 1 LSB Integral Nonlinearity (INL) Specification
  • Fast Settling Time: 16 µs (typ)
  • Power-on/Brown-out Reset (POR/BOR) Protection
  • DAC Voltage Reference Options:
  • Device VDD
  • External VREF (buffered or unbuffered)
  • Internal Band gap (1.227V typical)
  • Packages Types :
  • 16-lead 3 x 3 QFN, 10-lead MSOP, 10-lead 3 x 3 DFN
  • Temperature: -40°C to +125°C
Parametrics
Name
Value
Typical Operating Current (µA)
400
Resolution (Bits)
10
DACs per Package
1
Output Settling Time (µs)
16
DNL (LSB)
0.25
Temp. Range (°C)
-40°C to +125°C
Interface
I²C™

Documents

Jump to:

Data Sheets

06/13/2019
8862KB

Development tools data is currently unavailable.

Similar Devices

Product
Resolution
DACs per Package
Vref
Price 5K
8
1
Ext,VDD
$0.52
10
1
Ext
$0.60
12
1
Ext
$0.70
12
1
Ext
$0.70
12
4
Int,VDD
$1.37
6
1
Ext
$0.42
8
1

$0.64
8
2

$0.99
10
1

$0.84
10
2

$1.38
12
1

$1.18
12
2

$1.92
8
1

$0.53
8
2

$0.88
10
1

$0.73
10
2

$1.20
12
1

$1.07
12
2

$1.76
6
1
Ext,VDD
$0.49
8
1
Int,VDD,Ext
$0.60
8
2
Int,VDD,Ext
$0.94
10
1
Int,VDD,Ext
$0.74
10
2
Int,VDD,Ext
$1.28
12
1
Int,VDD,Ext
$1.03
12
2
Int,VDD,Ext
$1.78
8
1
Int,VDD,Ext
$0.49
8
2
Int,VDD,Ext
$0.84
10
1
Int,VDD,Ext
$0.64
10
2
Int,VDD,Ext
$1.11
12
1
Int,VDD,Ext
$0.94
12
2
Int,VDD,Ext
$1.63
8
1
Int
$0.82
8
2
Int
$1.07
10
1
Int
$1.17
10
2
Int
$1.53
12
1
Int
$1.66
12
2
Int
$2.14
8
1

$0.64
8
2

$0.99
10
1

$0.84
10
2

$1.38
12
1

$1.18
12
2

$1.92
8
1

$0.53
8
2

$0.88
10
1

$0.73
10
2

$1.20
12
1

$1.07
12
2

$1.76
8
1
Int,VDD,Ext
$0.60
8
2
Int,VDD,Ext
$0.94
10
1
Int,VDD,Ext
$0.74
10
2
Int,VDD,Ext
$1.28
12
1
Int,VDD,Ext
$1.03
12
2
Int,VDD,Ext
$1.78
8
1
Int,VDD,Ext
$0.49
8
2
Int,VDD,Ext
$0.84
10
1
Int,VDD,Ext
$0.64
10
2
Int,VDD,Ext
$1.11
12
1

$0.94
12
2
Int,VDD,Ext
$1.63
8
1
Ext
$0.70
8
2
Ext
$0.93
10
1
Ext
$1.00
10
2
Ext
$1.33
12
1
Ext
$1.41
12
2
Ext
$1.90
8
1
Ext
$0.94
10
1
Ext
$1.21

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP47CVB11-E/UN
0.023200
0.060000
10
MSOP
3x3mm
Matte Tin
e3
MCP47CVB11T-E/UN
0.023200
0.200000
10
MSOP
3x3mm
Matte Tin
e3
MCP47CVB11-E/MG
0.021600
0.041667
16
QFN
3x3x0.9mm
Matte Tin
e3
MCP47CVB11T-E/MG
0.021600
0.234849
16
QFN
3x3x0.9mm
Matte Tin
e3
MCP47CVB11-E/MF
0.023900
0.041667
10
DFN
3x3x0.9mm
Matte Tin
e3
MCP47CVB11T-E/MF
0.023900
0.234849
10
DFN
3x3x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
