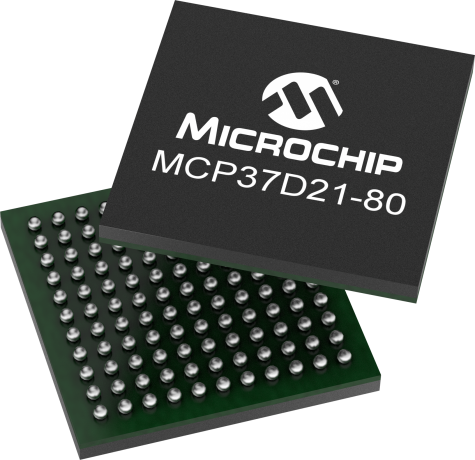

The MCP37D21-80 is a 14-bit pipelined A/D converter with a maximum sampling rate of 80 Msps. The high accuracy of over 73.9 dB Signal-to-Noise Ratio (SNR) and over 93 dB Spurious Free Dynamic Range (SFDR) enable high precision measurements of fast input signals. The device operates at very low power consumption of 320 mW at 80 Msps including LVDS digital I/O. Lower power saving modes are available at 79 mW for Standby and 22 mW for Shutdown. The MCP37D21-80 includes many digital processing features that simplify system design, cost and power usage. These include an integrated digital down-converter with onboard NCO, decimation filters for improved SNR, individual phase, offset and gain adjustment and a fractional delay recovery for time-delay corrections in multi-channel modes. Data is available through the serial DDR LVDS or parallel CMOS interface and configured via SPI. The device is available in the TFBGA-121 package. TFBGA-121 package is qualified for automotive applications (AEC-Q100).
The MCP37D21-80 14-bit 80 Msps ADC Evaluation Board (EV55U36A) provides the opportunity to evaluate the performance of the MCP37D21-80 device. With the MCP37D21-80 14-bit 80 Msps pipelined A/D converter on-board, the user can access internal Register bits, and evaluate the performance and functionality of the device, including built-in various digital signal processing features.
The MCP37XXX High-Speed Pipeline ADC Data Capture Card (ADM00506) is an FPGA-based memory buffer for the digital data received from the Analog to Digital Converter (ADC) on board the MCP37XXX Evaluation Boards. The data capture card connects to a PC via a USB cable, providing the user with two functionalities:
• The ability to send user commands directly to the ADC device using the
For pricing and availability, contact Microchip Local Sales.
