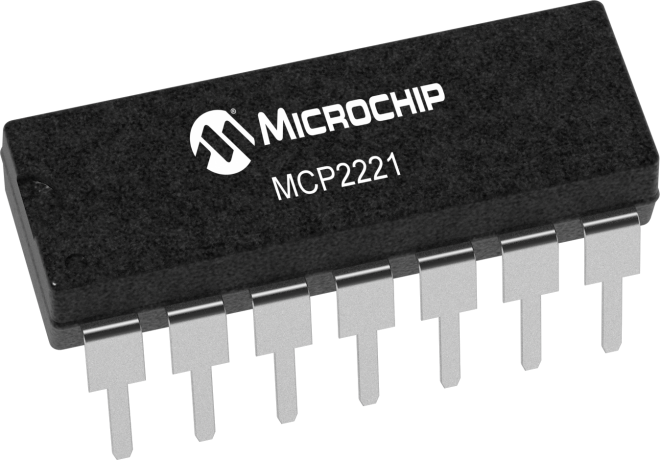

product primary image

MCP2221

USB 2.0 to I2C/UART Protocol Converter with GPIO

Status: Not Recommended for new designs

Features:

  • Supports full-speed USB (12 Mb/s)
  • Communications and configuration
  • Human Interface Device (HID) for I2C™, chip control and configuration
  • 64-byte Transmit
  • 64-byte Receive
  • 64 byte buffer to handle data throughput at any I2C™ baud rate
  • Fully configurable VID and PID assignments, and string descriptors
  • Bus-powered or self-powered
  • USB 2.0 Compliant
  • 4 kV Human Body Model (HBM)
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MCP2221 is a USB-to-UART/I2C serial converter which enables USB connectivity in applications that have a UART and I2C interfaces. The device reduces external components by integrating the USB termination resistors and the oscillator needed for USB operation. The MCP2221 also has four GP pins providing miscellaneous functionalities (GPIO, USBCFG, SSPND, Clock Output, ADC, DAC, interrupt detector).

Please see our MikroElektronika click board!  http://www.mikroe.com/click/usb-i2c

Please consider this device MCP2221A

Additional Features

    Universal Serial Bus (USB)

    • Supports full-speed USB (12 Mb/s)
    • Implements USB protocol composite device: Communication Device Class (CDC) for
      • Communications and configuration
      • Human Interface Device (HID) for I2C™, chip control and configuration
    • 128-byte Buffer to handle data throughput at any UART baud rate:
      • 64-byte Transmit
      • 64-byte Receive
    • Human Interface Device (HID) for both I2C™ communication and control.
      • 64 byte buffer to handle data throughput at any I2C™ baud rate
    • Fully configurable VID and PID assignments, and string descriptors
    • Bus-powered or self-powered
    • USB 2.0 Compliant

    USB Driver and Software Support

    CDC and Universal Asynchronous Receiver/Transmitter (UART) Options

    1²C™/SMBus

    SMBus Master

    General Purpose Input/Output (GPIO) Pins

    Highly Configurable

    Operating voltage: 3.0 – 5.5V

    Electrostatic Discharge (ESD) protection:

    • 4 kV Human Body Model (HBM)

    Industrial (I) Operating Temperature: -40°C to +85°C



    Parametrics
    Name
    Value
    Description
    USB-to-I2C/UART/SMBus Protocol Converter with GPIO (Master Mode)
    Upstream Port
    USB 2.0
    USB Speed
    Full Speed
    Downstream Ports
    I2C/SMBus, UART
    MCU Interface
    I2C/SMBus, UART
    Tx Buffer Size (bytes)
    64
    Rx Buffer Size (bytes)
    64
    GPIOs
    4
    Op Voltage (V)
    3.0 to 5.5
    Temp Range Min (°C)
    -40
    Temp Range Max (°C)
    85

    Documents

    Jump to:

    Data Sheets

    06/07/2017
    1214KB

    Errata

    05/24/2017
    67KB

    Development Environment

    • Demo & Evaluation Boards
    Demo & Evaluation Boards
    MCP2221 Breakout Module
    MCP2221 Breakout Module ( ADM00559 )

    The MCP2221 Breakout Module is a development and evaluation platform comprised of a single DIP form factor board. The provided supporting software demonstrates the capabilities of the MCP2221 device as a USB-to-UART/I2C/SMBus protocol converter. Additionally, these tools provide simple access for I/O control and the ability to establish custom device configuration. Custom tools can also be created...

    Learn More
    Add To Cart
    MCP2221 I2C Demo Board
    MCP2221 I2C Demo Board ( ADM00678 )

    The MCP2221 I2C Demonstration Board allows the user to communicate through a PC application to I2C slave devices by using the MCP2221 device as USB-to-I2C Master converter (bridge). The board can also work at the same time as a USB-to-RS232 (UART) bridge.

    Learn More
    Add To Cart

    Similar Devices

    Product
    USB Speed
    Downstream Ports
    Op. Voltage (V)
    GPIOs
    Price 5K
    Full Speed
    UART
    3.0 to 5.5
    8
    $1.29
    Full Speed
    SPI
    3.3 to 5.5
    9
    $1.29
    Full Speed
    I2C/SMBus, UART
    3.0 to 5.5
    4
    $1.55
    Full Speed
    I2C/SMBus, UART
    3.0 to 5.5
    4
    $1.37
    Hi Speed
    CF, SD, MMC, SDIO, MS, xD
    3.3
    15
    $1.75
    Hi Speed
    CF, SD, MMC, SDIO, MS, xD
    3.3
    15
    $1.75
    Hi Speed
    CF, SD, MMC, SDIO, MS, xD
    3.3
    12
    $3.17
    Hi Speed
    CF, SD, MMC, SDIO, MS, xD
    3.3
    12
    $3.17
    Hi Speed
    SD, MMC, MS, xD
    3.3
    4
    $1.43
    Hi Speed
    SD, MMC, MS
    3.3
    5
    $1.43
    Hi Speed
    SD, MMC
    3.3
    7
    $1.36
    Hi Speed
    CF, SD, MMC, MS, xD
    3.3
    32
    $1.71
    Hi Speed
    CF, SD, MMC, MS
    3.3
    32
    $1.71
    Hi Speed
    CF, SD, MMC, SDIO, MS
    1.8, 3.3
    14

    Hi Speed
    CF, SD, MMC, SDIO, MS, xD
    1.8, 3.3
    14

    Hi Speed
    SD, MMC, SDIO, MS, xD
    3.3
    1
    $2.30
    Hi Speed
    SD, MMC, SDIO, MS
    3.3
    1
    $2.30
    Hi Speed
    SD, MMC, eMMC
    3.3
    1
    $2.75
    Hi Speed
    SD, MMC, SDIO, MS
    3.3
    1
    $3.36
    Hi Speed
    SD, MMC, SDIO, MS
    3.3
    4
    $2.30

    RoHS Information

    Part Number
    Device Weight
    Shipping Weight
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    MCP2221A-I/P
    0.953300
    1.833333
    14
    PDIP
    .300in
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221-I/P
    0.953300
    1.833333
    14
    PDIP
    .300in
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221A-I/ST
    0.060000
    0.125000
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221AT-I/ST
    0.060000
    0.246800
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221T-I/ST
    0.060000
    0.246800
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221-I/ST
    0.060000
    0.125000
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221AT-I/STVAO
    0.060000
    0.246800
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221A-I/SL
    0.143200
    0.280702
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221AT-I/SL
    0.143200
    0.325000
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221-I/SL
    0.143200
    0.280702
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221T-I/SL
    0.143200
    0.325000
    14
    SOIC
    .150In(3.90mm)
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221A-I/ML
    0.041700
    0.076923
    16
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221AT-I/ML
    0.041700
    0.212121
    16
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221-I/ML
    0.041700
    0.076923
    16
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    Rohs icon
    efup china icon
    MCP2221T-I/ML
    0.041700
    0.212121
    16
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    Rohs icon
    efup china icon
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
