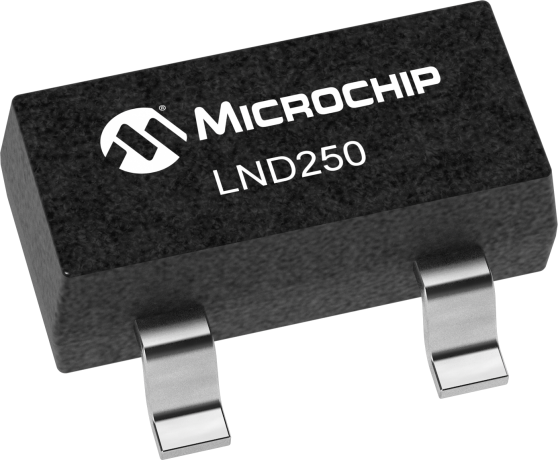

LND250

N-Channel Depletion-Mode DMOS FET

Status: In Production

Features:

  • Free from secondary breakdown
  • Low power drive requirement
  • Ease of paralleling
  • Excellent thermal stability
  • Integral source-drain diode
  • High input impedance and low CISS
  • ESD gate protection
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

The LND250 is a high voltage N-channel depletion mode (normally-on) transistor utilizing lateral DMOS technology. The gate is ESD protected. The LND250 is ideal for high voltage applications in the areas of normally-on switches, precision constant current sources, voltage ramp generation and amplification.

Additional Features
    • Free from secondary breakdown
    • Low power drive requirement
    • Ease of paralleling
    • Excellent thermal stability
    • Integral source-drain diode
    • High input impedance and low CISS
    • ESD gate protection
Parametrics
Name
Value
BVdsx min (V)
500
RDS
1000
Vgs(off) min (V)
-1.0
Vgs(off) max (V)
-3.0
Package
SOT-23

Documents

Jump to:
×

Data Sheets

LND150/LND250 N-Channel Depletion-Mode DMOS FETs Data Sheet

1233KB

Application Notes

Download All
AN-D12 - LND1 Series: High Voltage Ramp Generator

458KB
AN-D10 - LND150: Off-Line Compact Universal Linear Regulator

473KB
AN-D15 - Understanding MOSFET Data

638KB

Development tools data is currently unavailable.

Similar Devices

Product
BVdsx Min (V)
RDS (Ohms)
Price 5K
DN1509
90
6
$0.42
DN2450
500
10
$0.47
DN2470
700
42
$0.60
DN2530
300
12
$0.45
DN2535
350
25
$0.51
DN2540
400
25
$0.55
DN2625
250
3.5
$0.92
DN3135
350
35
$0.39
DN3145
450
60
$0.50
DN3525
250
6
$0.49
DN3535
350
10
$0.50
DN3545
450
20
$0.50
DN3765
650
8
$1.87
LND01
9
1.4
$0.32
LND150
500
1000
$0.28
LND250
500
1000
$0.30

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LND250K1-G
0.008300
0.039000
3
SOT-23
1.3mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
