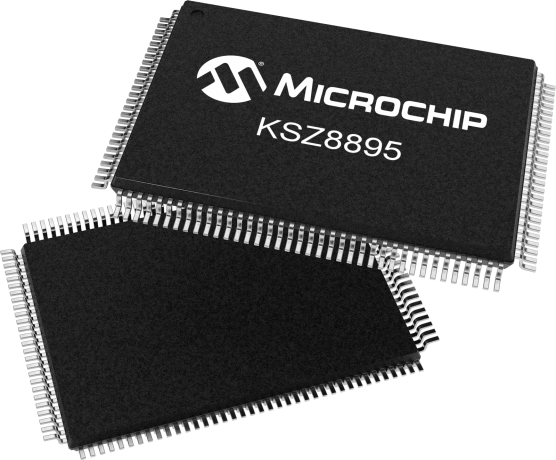

KSZ8895

5-Port 10/100 Ethernet Switch with Fiber Support

Status: In Production

Features:

  • New generation switch with five MACs and five PHYs that are fully compliant with the IEEE 802.3u standard
  • Non-blocking switch fabric assures fast packet delivery by utilizing a 1K MAC address lookup table and a store-and-forward architecture
  • MIB counters for fully-compliant statistics gathering 34 MIB counters per port
  • Full-chip software power-down and per port software power down
  • Energy-detect mode support <100mW full-chip power consumption when all ports have no activity
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The KSZ8895MQX/RQX/FQX/ML is a highly-integrated, Layer 2 managed, five-port switch with numerous features designed to reduce system cost. The KSZ8895 is Automotive qualified (AEC-Q100).

The KSZ8895 family was designed to be used in for cost sensitive 10/100Mbps five-port switch systems with low power requirements. Combining on-chip termination and internal LDO regulator help minimize system cost.  The KSZ8895 family supports high-performance memory bandwidth and shared memory-based switch fabric with non-blocking configuration.

The KSZ8895  family also includes an extensive feature set, including: power management, programmable rate limit and priority ratio, tag/port-based VLAN, packets filtering, four queue QoS prioritization, management interfaces, and MIB counters.

The KSZ8895 family provides multiple CPU data interfaces to effectively address both current and emerging fast Ethernet applications when port 5 is configured to separate MAC5 with SW5-MII/RMII and PHY5 with P5-MII/RMII interfaces.
The KSZ8895 family offers three configurations, providing the flexibility to meet different requirements:

  • KSZ8895MQX/ML has 5 10/100Base-T/TX transceivers, 1 SW5-MII and 1 P5-MII interface
  • KSZ8895RQX has 5 10/100Base-T/TX transceivers, 1 SW5-RMII and 1 P5-RMII interface
  • KSZ8895FQX has 4 10/100Base-T/TX transceivers on Ports 1, 2, 3 and 5 (port 3 can be set to the fiber mode). 1 100Base-FX transceivers on Port 4. 1 SW5-MII and 1 P5-MII interface

All registers of MACs and PHYs units can be managed by the SPI or the SMI interface. MIIM registers can be accessed through the MDC/MDIO interface.

EEPROM can set all control registers for the unmanaged mode. KSZ8895MQX/RQX/FQX are 128-pin PQFP package. KSZ8895ML is 128-pin LQFP package.

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

**Please note: KSZ8895 part numbers ending/containing "A" are not recommended for new designs**
i.e. For new designs, instead of using KSZ8895MQXIA, please use KSZ8895MQXI.



Additional Features
  • Advanced Switch Features
    • IEEE 802.1q VLAN support for up to 128 active VLAN groups (full-range 4096 of VLAN IDs)
    • Static MAC table supports up to 32 entries
    • VLAN ID tag/untag options, per port basis
  • Comprehensive Configuration Register Access
    • Serial management interface (MDC/MDIO) to all PHYs registers and SMI interface (MDC/MDIO) to all registers
    • High-speed SPI (up to 25MHz) and I2C master Interface to all internal registers
    • I/0 pins strapping and EEPROM to program selective registers in unmanaged switch mode
  • QoS/CoS Packet Prioritization Support
    • Per port, 802.1p and DiffServ-based
    • 1/2/4-queue QoS prioritization selection
    • Programmable weighted fair queuing for ratio control
  • Integrated 5-Port 10/100 Ethernet Switch
    • New generation switch with five MACs and five PHYs that are fully compliant with the IEEE 802.3u standard
    • PHYs designed with patented enhanced mixed-signal technology
    • Non-blocking switch fabric assures fast packet delivery by utilizing a 1K MAC address lookup table and a store-and-forward architecture
  • Switch Monitoring Features
    • Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port or MII/RMII
    • MIB counters for fully-compliant statistics gathering 34 MIB counters per port
    • Loop-back support for MAC, PHY, and remote diagnostic of failure
  • Low-Power Dissipation
    • Full-chip software power-down and per port software power down
    • Energy-detect mode support <100mW full-chip power consumption when all ports have no activity
Parametrics
Name
Value
Description
5-Port 10/100 Ethernet Switch with MII/RMII
Ethernet Bandwidth
10/100Mbps
MAC
5
PHY
4
TX/RX RAM Buffer(Bytes)
n/a
Interrupt Pin
Yes
LEDs
15
Op. Voltage (V)
3.3
Interface
MII/RMII
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
# of Ports
5
Automotive
Yes
Managed
Yes
Copper Support
10/100 (4)
Fiber Support
100FX (2)
MII
Yes
RMII
Yes
Supply Voltage (V)
3.3
Internal LDO
Yes cntlr
Vdd I/O (V)
1.8/2.5/3.3
LinkMD Cable Diag
Yes
On-Chip Termination
Yes
ESD Rating (KV)
1.5KV
Smart Power Adjust
Yes
Largest Pkt-Size Bytes
2000
IPV6
Yes
# of VLAN
128
Flow Ctrl
Yes
Rate Limiting
Yes
Rapid Spanning Tree
Yes
Static MAC Addr
Yes
