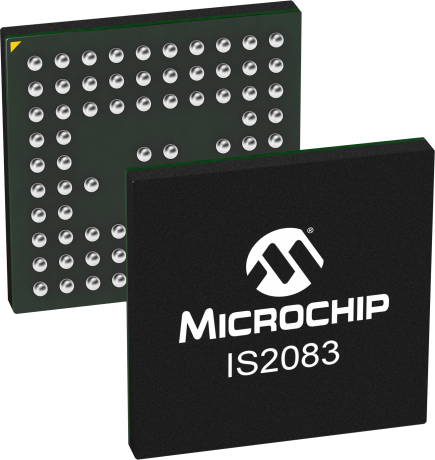

product primary image

IS2083

Status: In Production

Features:

  • Bluetooth 5.0 certified
  • HFP 1.7, HSP 1.2, A2DP 1.3 (Sink), SPP 1.2, AVRCP 1.6, PBAP 1.2
  • Supports Bluetooth classic (BR/EDR) and Bluetooth Low Energy (BLE)
  • Supports decoding for AAC, SBC, LDAC (IS2083BM-2L2 only)
  • USB, UART, and Over-the-Air (OTA) Firmware Upgrade
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The IS2083 is a Bluetooth® 5.0 certified dual-mode audio IC. It contains an on-board Bluetooth stack and audio profiles and supports 24-bit/96 kHz high-resolution audio formats to enable high-fidelity wireless audio. An integrated Digital Signal Processor (DSP) decodes AAC and SBC codecs and executes advanced audio and voice processing such as Wide-Band (WB) speech, Acoustic Echo Cancellation (AEC) and Noise Reduction (NR). This platform provides offers flexibility in customizing peripheral settings and DSP functionality with the use of a Windows® operating system-based Graphical User Interface (GUI) configuration tool.

Start playing music and receiving phone calls immediately with our pre-programmed firmware. Maintain product differentiation by deploying new features via USB, UART and Over-the-Air (OTA) firmware upgrades. Our proprietary Wireless Concert Technology (WCT) streams audio to multiple devices from the same audio source. With its tight speaker synchronization, WCT delivers uninterrupted music to a network of speakers for party streaming. The IS2083 is engineered for high levels of integration to reduce your engineering Bill of Materials (eBOM). An integrated power amplifier helps achieve longer range, and the embedded mode functionality enables system control without a host MCU.

See the corresponding RF Certified module, BM83.

Additional Features
  • Bluetooth 5.0 certified
  • HFP 1.7, HSP 1.2, A2DP 1.3 (Sink), SPP 1.2, AVRCP 1.6, PBAP 1.2
  • Supports Bluetooth classic (BR/EDR) and Bluetooth Low Energy (BLE)
  • General Attribute Profile (GATT) and General Access Profile (GAP)
  • Bluetooth Low Energy Data Length Extension (DLE) and secure connection
  • Supports decoding for AAC, SBC, LDAC (IS2083BM-2L2 only)
  • USB, UART, and Over-the-Air (OTA) Firmware Upgrade
  • Receive Sensitivity: -90 dBm (2 Mbps EDR)
  • Transmit Output Power: +9.5 dBm (EDR)
  • I2S input/output, two digital MICs, two MICs, stereo analog out, aux-in
  • Built-in Flash for firmware updates
  • Built-in and custom voice prompts
  • Audio processing customization with GUI tool
  • MCLK, I2C, two LEDs, PWM, GPIOs
  • 16 MHz main clock input
  • Operating Voltage: 3.2V to 4.2V
  • Operating Temperature: -40ºC to +85ºC
Parametrics
Name
Value
Bluetooth Classic-Data/SPP
Yes
Bluetooth Classic-Audio
Yes
Bluetooth Low Energy
Yes
Audio Channels
Stereo
Analog Audio Out
Yes
Digital Audio Out
Yes
MIC-in
2
Line-in
Yes
I2C
1
PWM
1
ADC Channels
2
GPIO
19
Package Type
BGA
Package Size
5.5 x 5.5 mm
Temperature Range
-40C to +85C
Operating Voltage Range
3.2V to 4.2V
UART
1

Documents

Jump to:

Software Tools

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
BM83 Bluetooth Audio Development Kit
BM83 Bluetooth Audio Development Kit ( DM164152 )

The BM83 Bluetooth Audio Development Board (BM83 EVB) enables the user to evaluate and demonstrate the functionality of the BM83 audio module and IS2083BM System-on-Chip (SoC). This board is a complete, all-in-one solution to develop multiple Bluetooth audio applications including portable speakers and headphones. The BM83 EVB features an on-board PIC32 for Host MCU mode applications, an external...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
IS2083BM-232
0.278000
82
VFBGA
5.5x5.5x0.9mm
SAC305
e1
IS2083BM-232-TRAY
0.428571
82
VFBGA
5.5x5.5x0.9mm
SAC305
e1
IS2083BM-2L2
0.278000
82
VFBGA
5.5x5.5x0.9mm
SAC305
e1
IS2083BM-2L2-TRAY
0.428571
82
VFBGA
5.5x5.5x0.9mm
SAC305
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
