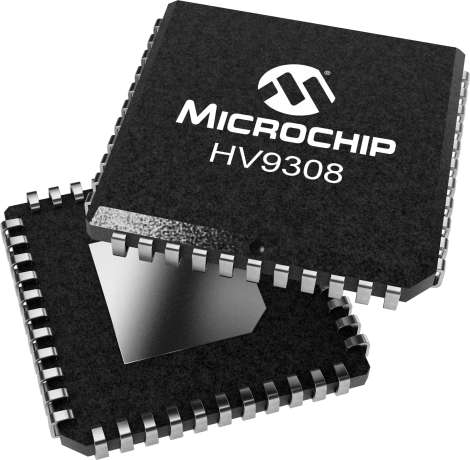

product primary image

HV9308

32-Channel, w/High Voltage CMOS Outputs, 80V

Status: In Production

Features:

  • Processed with HVCMOS® technology
  • Low power level shifting
  • Shift register speed 8.0MHz
  • Latched data outputs
  • 5.0V CMOS compatible inputs
  • Diode to VPP allows efficient power recovery
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The HV9308 is a low voltage serial to high voltage parallel converter with push-pull outputs. This device has been designed for use as a driver for AC-electroluminescent displays. It can also be used in any application requiring multiple output, high voltage current sourcing and sinking capabilities such as driving plasma panels, vacuum fluorescent, or large matrix LCD displays. This device consists of a 32-bit shift register, 32 latches, and control logic to enable outputs. HVOUT1 is connected to the first stage of the shift register through the Output Enable logic. Data is shifted through the shift register on the low to high transition of the clock. The HV9308 shifts in the clockwise direction when viewed from the top of the package. A data output buffer is provided for cascading devices. This output reflects the current status of the last bit of the shift register (32). Operation of the shift register is not affected by the LE (latch enable) or the OE (output enable) inputs. Transfer of data from the shift register to the latch occurs when the LE input is high. The data in the latch is retained when LE is low.

Additional Features
  • Processed with HVCMOS® technology
  • Low power level shifting
  • Shift register speed 8.0MHz
  • Latched data outputs
  • 5.0V CMOS compatible inputs
  • Diode to VPP allows efficient power recovery
Parametrics
Name
Value
Type
Source-Sink
Output Channels
32
Vout (V) operating – Transient
90
Vout (V) Operating - Sustained
80
Iout (mA) per Channel
-20, +5
Output Structure
Half-Bridge
Input Structure
Serial
Minimum Data Clock (MHz)
8
General Description
32-CHANNEL, W/HI-VOLT CMOS OUTPUTS, 80V
Package
44/PQFP 44/PLCC

Documents

Jump to:

Data Sheet

08/27/2014
617KB

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$14.46
$10.08
$2.51
$3.51
$2.25
$3.81
$3.51
$3.33
$3.33
$4.00
$5.51
$4.45
$4.00
$5.51
$4.45
$6.71
$8.76
$6.07
$6.67
$1.60
$11.95
$8.45
$2.06
$1.49
$7.11
$8.52
$13.48
$3.00
$3.00
$3.00
$1.09
$0.84
$1.67
$1.39
$1.17
$1.49
$1.50
$1.07
$3.39
$3.11
$3.24
$3.30

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HV9308PJ-G
2.375500
3.259259
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
