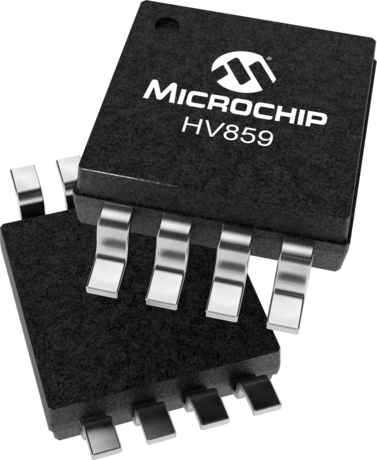

HV859

High Voltage EL Lamp Driver FOR Low Noise Applications

Status: In Production

Features:

  • Patented audible noise reduction
  • Patented lamp aging compensation
  • 210 VPP output voltage for higher brightness
  • Patented output timing for high efficiency
  • Single cell lithium ion compatible
  • 150nA shutdown current
  • Wide input voltage range 1.8 to 5.0V
  • Separately adjustable lamp and converter frequencies
  • Output voltage regulation
  • Split supply capability
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

HV859 is a high voltage driver designed for driving Electroluminescent (EL) lamps of up to 5.0 square inches. The input supply voltage range is from 1.8 to 5.0V. The device uses a single inductor and a minimum number of passive components. The nominal regulated output voltage that is applied to the EL lamp is ±105V. The chip can be enabled/disabled by connecting the resistor on RSW-Osc to VDD/ground. The HV859 has two internal oscillators, a switching MOSFET, and a high voltage EL lamp driver. The frequency for the switching MOSFET is set by an external resistor connected between the RSW-Osc pin and the supply pin VDD. The EL lamp driver frequency is set by an external resistor connected between REL-Osc pin and the VDD pin. An external inductor is connected between the LX and VDD pins or VIN for split supply applications. A 0.003-0.1µF capacitor is connected between CS and ground. The EL lamp is connected between VA and VB. The switching MOSFET charges the external inductor and discharges it into the capacitor at CS. The voltage at CS will start to increase. Once the voltage at CS reaches a nominal value of 105V, the switching MOSFET is turned OFF to conserve power. The outputs VA and VB are configured as an H bridge and are switching in opposite states to achieve ±105V across the EL lamp.

Additional Features
  • Patented audible noise reduction
  • Patented lamp aging compensation
  • 210 VPP output voltage for higher brightness
  • Patented output timing for high efficiency
  • Single cell lithium ion compatible
  • 150nA shutdown current
  • Wide input voltage range 1.8 to 5.0V
  • Separately adjustable lamp and converter frequencies
  • Output voltage regulation
  • Split supply capability
Parametrics
Name
Value
Type
Single Lamp Driver
Input Voltage Low (V)
1.8
Input Voltage High (V)
5
Nominal Output Voltage (V)
±105
Max Switch Resistance(Ω)
6.0
Output Regulation
Yes
Max Lamp Size per Device (in2)
5.0
Package
DFN-8, MSOP-8
Product Type
Single Lamp Drivers
Frequency (EL, Typical)
175Hz - 235Hz
Θja (C/W)
37, 217
VOUT
210
