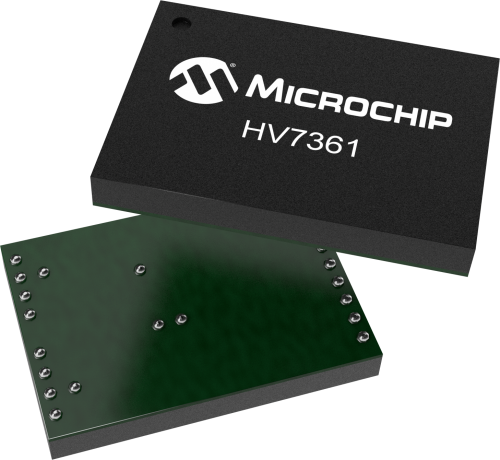

HV7361

High Speed, +/-100V 2.5A, Ultrasound Pulser w/ T/R Switch

Status: In Production

Features:

  • HVCMOS® technology for high performance
  • High density integration AC coupled pulser
  • 0 to ±100V output voltage
  • ±2.5A source and sink minimum pulse current
  • Up to 35MHz operating frequency
  • 2.0ns matched delay times
  • 2.5, 3.3 or 5.0V CMOS logic interface
  • Built-in two terminal, low noise T/R switch
  • Low power consumption and very simple to use
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

HV7361 is a high voltage, high-speed, pulse generator with built-in, fast return to zero damping FETs, and an integrated, two terminal, low noise T/R switch. This high voltage and high-speed integrated circuit is designed for portable medical ultrasound image devices, but can also can be used for NDT and test equipment applications. The HV7361 consists of a controller logic interface circuit, level translators, AC coupled MOSFET gate drivers and high voltage and high current P-channel and N-channel MOSFETs as the output stage. The peak output currents of each channel are guaranteed to be over ±2.5A with up to ±100V of pulse swing. The AC coupling topology for the gate drivers not only saves two floating voltage supplies, it also makes the PCB layout easier.

Additional Features
    • HVCMOS® technology for high performance
    • High density integration AC coupled pulser
    • 0 to ±100V output voltage
    • ±2.5A source and sink minimum pulse current
    • Up to 35MHz operating frequency
    • 2.0ns matched delay times
    • 2.5, 3.3 or 5.0V CMOS logic interface
    • Built-in two terminal, low noise T/R switch
    • Low power consumption and very simple to use
Parametrics
Name
Value
# of Channels
1
Output Voltage (V)
±100
Output Current (A)
±2.5
Type
Hybrid
Package
LFGA-22
Features
Built-in T/R switch, 8 capacitors
