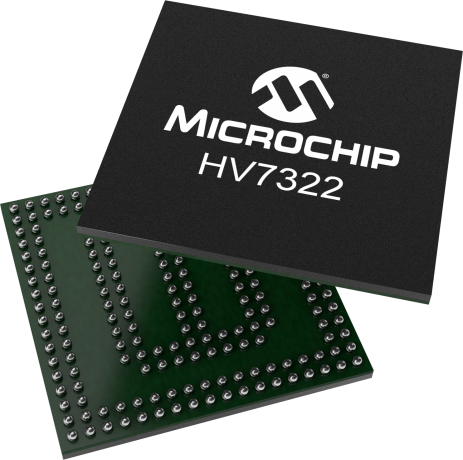

HV7322

8-Channel 7-Level, +/-80V High Voltage Pulser with T/R Switches

Status: In Production

Features:

  • High performance HVCMOS technology
  • 8-Ch, True 5-Level/pseudo 7-level, ±80V, ±2A with RTZ
  • Programmable ±0.5, ±1.0, ±1.5 & ±2A output current from VPP1/VNN1
  • Integrated RF blocking, clamp diode & RX damp
  • 13Ω T/R & LV switches allow receiver multiplexing
  • 210Ω auto bleeding switches for return to true zero
  • 220 MHz clock retiming synchronization
  • 2.5, 3.3V logic control voltage
  • Adjustable T/R switch delay, avoid echo saturation
  • TX output frequency up to 20 MHz
  • -40 dB Second Harmonic Distortion at 5MHz
  • Package: 12mm x 12mm TFBGA
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The HV7322 is an 8-channel, true 5-Level or pseudo 7-Level, high voltage pulser with integrated dual T/R switches. It is designed for medical ultrasound or nondestructive testing (NDT) applications.
The device has seven output levels: VPP0, 1, 2, VNN0, 1, 2 and GND. The output transistors can provide up to ±2A of current at ±80V maximum.
HV7322 has the 220 MHz differential retiming clock which realigns the logic input signals to a master clock. This feature reduces delay variations caused by FPGA inaccuracies and/or long PCB traces.
The built-in gate driver regulators allow interdependent VPP0, 1, 2 and VNN0, 1, 2 HV rails and freely move the voltage from 0 to ± 80V.
The logic control voltages are designed to work with LVDS or LVCMOS logic families.

For further information, please contact Microchip sales office.


Additional Features
    • High performance HVCMOS technology
    • 8-Ch, True 5-Level/pseudo 7-level, ±80V, ±2A with RTZ
    • Programmable ±0.5, ±1.0, ±1.5 & ±2A output current from VPP1/VNN1
    • Integrated RF blocking, clamp diode & RX damp
    • 13Ω T/R & LV switches allow receiver multiplexing
    • 210Ω auto bleeding switches for return to true zero
    • 220 MHz clock retiming synchronization
    • 2.5, 3.3V logic control voltage
    • Adjustable T/R switch delay, avoid echo saturation
    • TX output frequency up to 20 MHz
    • -40 dB Second Harmonic Distortion at 5MHz
    • Package: 12mm x 12mm TFBGA
Parametrics
Name
Value
# of Channels
8
Output Voltage (V)
±80
Output Current (A)
±2
Type
Monolithic
Package
12mmX12mmX1.2 mm TFBGA
Features
7 output levels, B-Mode and CW-Mode Options, Built-In dual T/R Switch

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
# of Channels
Output Voltage (V)
Type
Price 5K
4
±80
Monolithic
$15.20
8
±80
Monolithic
$27.22
4
±70
Monolithic

8
±60
Monolithic
$13.75
8
±70
Monolithic
$18.56
8
+5 to +150
Monolithic
$8.75
16
±80
Monolithic

1
±100
Hybrid
$4.36
1
±100
Hybrid
$5.04
4
±75
Monolithic
