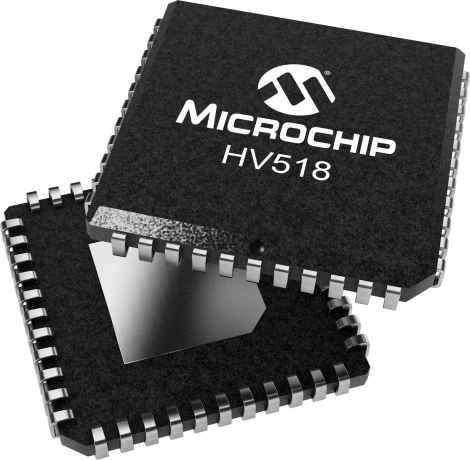

product primary image

HV518

32-Channel Vacuum Fluorescent Display Driver

Status: In Production

Features:

  • 32 output lines
  • 90V output swing
  • Active pull-down
  • Latches on all outputs
  • Up to 6.0MHz @ VDD = 5.0V
  • -40°C to +85°C operation
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

The HV518 is designed for vacuum fluorescent or DC plasma applications, where it can serve as a segment, digit or matrix display driver. Each device has 32 outputs, 32 latches and a 32-bit cascadable shift register. Serial data enters the shift register on the LOW-to-HIGH transition of the clock input. With latch enable (LE) HIGH, parallel data is transferred to the output buffers through a 32-bit latch. When LE is low the data is stored in the latch. When STROBE (STR) is LOW, all outputs are enabled; if STROBE is HIGH, all outputs are LOW.

Additional Features
  • 32 output lines
  • 90V output swing
  • Active pull-down
  • Latches on all outputs
  • Up to 6.0MHz @ VDD = 5.0V
  • -40°C to +85°C operation
Parametrics
Name
Value
Type
Source-Sink
Output Channels
32
Vout (V) operating – Transient
90
Vout (V) Operating - Sustained
80
Iout (mA) per Channel
-25.0, +2.0
Output Structure
Half-Bridge
Input Structure
Serial
Minimum Data Clock (MHz)
6
General Description
32-CHANNEL, SERIAL-INPUT LATCHED DRIVER, 80V
Package
44/PLCC 40/PDIP

Documents

Jump to:
×

Data Sheets

HV518 32-Channel Vacuum Fluorescent Display Driver Data Sheet

1091KB

Application Notes

AN-H03 - Basics of EL Panel Drive Techniques

517KB

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
HV3418
$15.40
HV507
$10.74
HV508
$2.67
HV5122
$3.74
HV513
$2.25
HV518
$3.81
HV5222
$3.51
HV5308
$3.55
HV5408
$3.55
HV5522
$4.00
HV5523
$5.51
HV5530
$4.45
HV5622
$4.26
HV5623
$5.51
HV5630
$4.74
HV57009
$6.71
HV574
$8.76
HV57708
$6.46
HV57908
$7.10
HV5812
$1.60
HV582
$11.95
HV583
$8.45
HV66
$2.06
HV6810
$1.49
HV7022
$7.57
HV7224
$8.52
HV7620
$13.48
HV9308
$3.20
HV9408
$3.20
HV9808
$3.00
MIC2981
$1.16
MIC2981/82

MIC5800
$0.89
MIC5801
$1.78
MIC5821
$1.48
MIC5822
$1.25
MIC5841
$1.59
MIC5842
$1.60
MIC5891
$1.14
MIC58P01
$3.61
MIC58P42
$3.31
MIC59P50
$3.45
MIC59P60
$3.51

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HV518PJ-G
2.375500
3.259259
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
HV518PJ-G-M903
2.375500
3.400000
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
HV518P-G
6.500000
11.11111
40
PDIP
.600in
Matte Tin
e3
HV518P-G-S313
6.500000
11.11111
40
PDIP
.600in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
