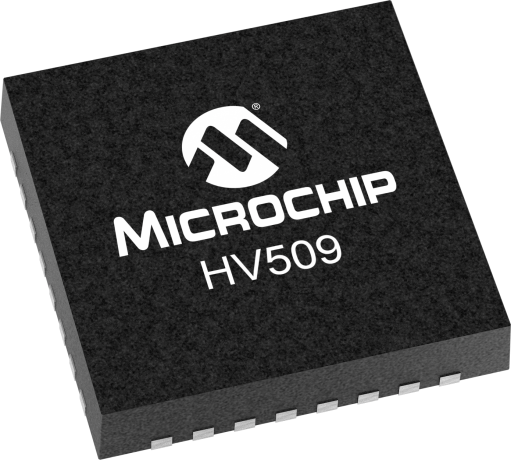

product primary image

HV509

16-Channel S-P Converter with HV Backplane Driver and Push-Pull Outputs

Status: In Production

Features:

  • HVCMOS® technology
  • Output voltage up to +200V
  • Shift register speed 500kHz @ VDD = 2.0V
  • 16 high voltage outputs
  • High voltage backplane driver
  • CMOS input levels
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The HV509 is a 200V, 16-channel serial to parallel converter. The high voltage outputs and the backplane driver are designed to source and sink ±1.0mA. The high voltage outputs are controlled by a 16-bit serial shift register, followed by a 16-bit latch. Data is shifted through the shift registers during the low to high clock transition. A data output buffer is provided for cascading multiple devices. Data is transferred to the 16-bit latch when a logic level low is applied to the LE input. Data is stored in the latch when LE is high. Output states are controlled by the data in the latch and by the POL pin.

Additional Features
  • HVCMOS® technology
  • Output voltage up to +200V
  • Shift register speed 500kHz @ VDD = 2.0V
  • 16 high voltage outputs
  • High voltage backplane driver
  • CMOS input levels
Parametrics
Name
Value
Type
16-Segment Drivers
Input Voltage Low (V)
2.0
Input Voltage High (V)
5.5
Nominal Output Voltage (V)
50 to 200
Max Switch Resistance(Ω)
--
Output Regulation
--
Max Lamp Size per Device (in2)
6.5
Package
QFN-32
Notes
--
Frequency (EL, Typical)
--
Θja (C/W)
--
VOUT
400

Documents

Jump to:

Data Sheets

06/23/2015
554KB

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$1.55
$1.55
$1.38
$1.87
$1.18
$0.84
$1.27
$1.00
$0.92
$0.92
$0.92
$0.71
$0.71
$0.73
$0.81
$0.97
$0.85
$0.94
$0.89
$0.89
$1.28

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HV509K6-G
0.073660
0.469388
32
VQFN
5x5x1.0mm
Matte Tin
e3
HV509K6-G-M932
0.073660
0.206061
32
VQFN
5x5x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
