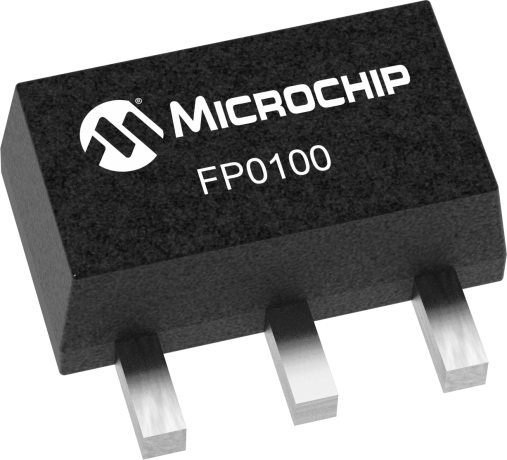

product primary image

FP0100

Fault Protection Switch with Current Fold Back

Status: In Production

Features:

  • Up to 100V input voltage protection
  • Low on resistance – 4.0Ω typical
  • Fast switching speed
  • No external supplies needed
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

FP0100 is a high voltage fault protection switch with current fold-back. It is designed to protect system output power supplies against over-current or short circuit conditions. In protection mode, the FP0100 limits the current to 300µA. The FP0100 can be considered as a normally closed switch with a typical switch resistance of 4.0Ω. The peak current allowed to pass through the switch can be set by an external resistor across VOUT and RSEN. Once the voltage drop across VIN and VOUT exceeds a nominal value of 3.0V, the input current will fold-back to 300µA. In the off state, the FP0100 can withstand up to 100V. Higher input voltages can be accommodated by using an external depletion-mode MOSFET. Please refer to Figure 4 for more details. The FP0100 is available in a SOT-89 package.

Additional Features
    • Up to 100V input voltage protection
    • Low on resistance – 4.0Ω typical
    • Fast switching speed
    • No external supplies needed











    Parametrics
    Name
    Value
    Voltage (V)
    100
    # of Channels
    1
    Ron (O)
    4.5
    VOFF (V)
    4.5
    Package
    SOT-89

    Documents

    Jump to:

    Development tools data is currently unavailable.

    Similar Devices

    Product
    Price 5K
    $0.78

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (grams)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    FP0100N8-G
    0.051800
    0.132000
    3
    SOT-89
    -
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
