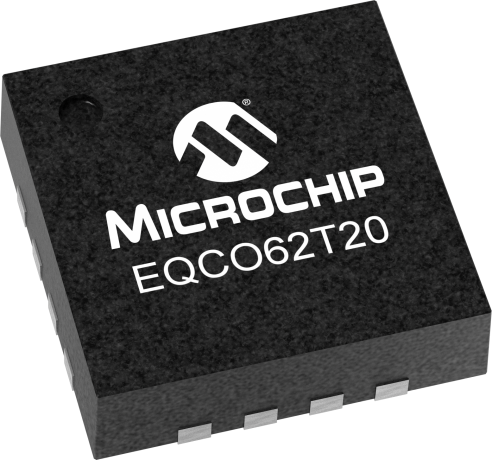

EQCO62T20

Status: In Production

Features:

  • 1.25 Gbps to 6.25Gbps Video Downlink
  • Up to 20Mbps Uplink for camera control
  • Supports distance up to 212m @ 1.25Gbps over RG11 Coax
  • Supports distance up to 68m @ 6.25Gbps over RG11 Coax
  • Enables nanosecond precise triggering for camera control
  • Also supports 8b/10b coding up to 6.25Gbps
  • Support power over coax cable up to 900mA DC
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The EQCO62T20 is a auto adaptive video cable driver designed to transport simultaneous asymmetric bi-directional communication up to 6.25 Gbps downlink and up to 20 Mbps uplink over a single coaxial cable.  The protocols supported are  8b/10b NRZ coding and the CoaXPress® Standard over conventional coaxial cable.

Additional Features
    • 1.25 Gbps to 6.25Gbps Video Downlink
    • Up to 20Mbps Uplink for camera control
    • Supports distance up to 212m @ 1.25Gbps over RG11 Coax
    • Supports distance up to 68m @ 6.25Gbps over RG11 Coax
    • Enables nanosecond precise triggering for camera control
    • Also supports 8b/10b coding up to 6.25Gbps
    • Support power over coax cable up to 900mA DC
Parametrics
Name
Value
Temp Range (°C)
-40 to 85
Power Consumption
<70mW @1.2V
Package Size (mm)
4x4
Package Type
QFN
Pin Count
16
Package Pitch
0.65mm pin pitch
Operating Voltage Range (V)
1.15 to 1.25
Storage Temp Range (°C)
-65 to 150

Documents

Jump to:

Data Sheet

Brochures

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
CoaXPress Transmitter (Camera) Evaluation Board
CoaXPress Transmitter (Camera) Evaluation Board ( EVB-DBSUB1584 )

The CoaXPress (CXP) machine vision standard uses asymmetric data transmission over Coax cables - with speeds of up to 6.2Gbit/s from the camera and up to 20Mbit/s control data from the frame grabber to the camera. Microchip offers fully qualified board-sets (transmitter and receiver) as an evaluation and development tool to aid customers in rapid adoption.

Learn More
