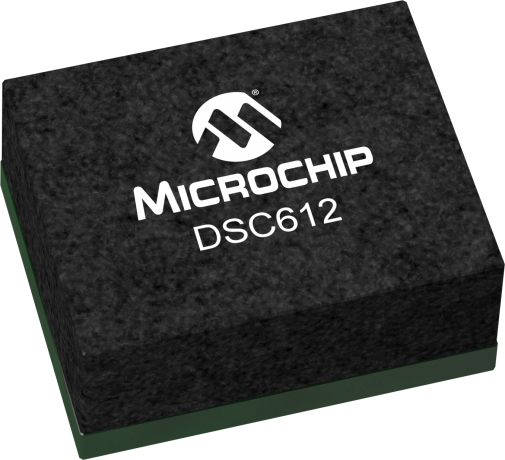

product primary image

DSC612

2-Output Any-Rate MEMS Clock Generator

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The DSC612 family of devices is industry’s smallest MEMS clock generator that can replace up to two crystals and oscillators on a board, reducing timing component board space by up to 80 percent. The clock generator eliminates the need for an external crystal by integrating the low power and high stability Micro-Electro-Mechanical Systems (MEMS) resonator. The family includes two low power fractional PLLs that provide leading frequency flexibility and robust jitter performance. Customer can configure output frequency, control pin function, package size, PPM accuracy and temperature range. Up to three output drive strengths are available based on the custom board loading condition. Spread-Spectrum clocks are also available for EMI reduction.

The DSC612 is a highly configurable device and is factory programmed to meet the customer’s needs. Please go to  ClockWorks Configurator  to configure the output frequencies and control functions,  generate custom part number and data sheet, and order samples.

DSC613 product family sell sheet

Under the same family, the DSC613 supports three LVCMOS clock outputs and one control input.

Additional Features
  • Supports 2 Any-Rate LVCMOS clock outputs from 2kHz to 100MHz
  • Integrated MEMS resonator eliminates the need for external crystal
  • Low power consumption: 5mA active 1 µA standby current
  • Wide supply voltage range: 1.71V -3.63V
  • Ultra-small package size: 1.6mm x 1.2 mm, 2.0mm x 1.6mm, 2.5mm x 2.0mm
  • Supports wide temperature range: -40 to +125ºC
  • Flexible control functions: Output Enable, Standby, SLEEP, Frequency Select, SpreadSpectrum Enable
  • High frequency stability across full temperature range: ±20ppm, ±25ppm, ±50ppm
  • Supports 2 output drive strength and Spread Spectrum clock for EMI reduction
  • Excellent shock and vibration immunity
  • High reliability
  • Lead free and RoHS compliant
  • AEC-Q100 automotive grade available
Parametrics
Name
Value
Product Type
Low Power Clock Generators
# of Outputs
2
Voltage
1.71 - 3.63
Output Logic
LVCMOS
Output Frequency Min. (MHz)
0.002
Output Frequency Max. (MHz)
100

Documents

Jump to:

Data Sheets

10/31/2018
875KB

Brochures

02/18/2019
713KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DSC6121HI2A-0090
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-0090T
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AE
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AET
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AG
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AGT
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AH
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AHT
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AJ
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AJT
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AK
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AKT
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AM
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AMT
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AP
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00APT
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AQ
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AQT
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00AR
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121HI2A-00ART
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6121MI2A-005Q
0.005600
0.060000
4
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC6121MI2A-005QT
0.005600
0.036667
4
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC6121MI2A-00AH
0.005600
0.060000
4
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC6121MI2A-00AHT
0.005600
0.036667
4
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC6122HI2A-00AU
0.019500
0.060000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6122HI2A-00AUT
0.019500
0.035000
4
VFLGA
1.6x1.2x0.89mm
NiAu
e4
DSC6122MI2A-00AU
0.005600
0.060000
4
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC6122MI2A-00AUT
0.005600
0.036667
4
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612RI3A-010GT
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RI3A-010JT
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RI3A-010JB
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RI3A-010GB
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RI1A-012MT
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RI2A-012PT
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RA3A-010ST
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RA3A-010SB
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RA3A-010S
0.021429
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RI3A-010G
0.021429
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RI3A-010J
0.021429
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RI1A-012M
0.021429
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RI2A-012P
0.021429
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RL3A-010K
0.021429
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RL3A-010KT
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612RL3A-010KB
0.046667
6
VFLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC612NL3A-012R
0.009800
0.060000
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612NL3A-012RT
0.009800
0.036667
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612NA2A-010J
0.009800
0.060000
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612NA2A-010JT
0.009800
0.036667
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612NA2A-010JB
0.009800
0.036667
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612NI3A-010G
0.009800
0.060000
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612NI3A-010GT
0.009800
0.036667
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612PI2A-012Q
0.009400
0.060000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC612PI2A-012QT
0.009400
0.035000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC612PI3A-010TB
0.009400
0.035000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC612NI3A-010GB
0.009800
0.036667
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612NI3A-010T
0.009800
0.060000
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612NI3A-010TT
0.009800
0.036667
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612NI3A-010TB
0.009800
0.036667
6
VFLGA
2.0x1.6x0.89mm
Au Flash
e4
DSC612PI3A-010J
0.009400
0.060000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC612PI3A-010JT
0.009400
0.035000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC612PI3A-010JB
0.009400
0.035000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC612PI3A-010K
0.009400
0.060000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC612PI3A-010KT
0.009400
0.035000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC612PI3A-010KB
0.009400
0.035000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC612PI3A-010T
0.009400
0.060000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC612PI3A-010TT
0.009400
0.035000
6
VFLGA
1.6x1.2x0.89mm
Au Flash
e4
DSC6121JI2A-0024
0.007400
0.021429
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-0024T
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-0042
0.007400
0.021429
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-0042T
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-005S
0.007400
0.021429
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-005ST
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-0090
0.007400
0.021429
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-0090T
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-00AH
0.007400
0.021429
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-00AHT
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6122JI2A-00AU
0.007400
0.021429
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6122JI2A-00AUT
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-00G0
0.007400
0.021429
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-00G0T
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-00HJ
0.007400
0.021429
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JI2A-00HJT
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JL2B-015G
0.007400
0.021429
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JL2B-015GT
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JL2B-0170
0.007400
0.021429
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JL2B-0170T
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JE1B-0198
0.007400
0.021429
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121JE1B-0198T
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
DSC6121CE2A-0036
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CE2A-0036T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CE2A-0076
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CE2A-0076T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CE2A-0081
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CE2A-0081T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CE2A-0082
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CE2A-0082T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CE2A-00CU
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CE2A-00CUT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CE2A-00CV
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CE2A-00CVT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI1A-0043
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI1A-0043T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-0090
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-0090T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AE
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AET
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AG
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AGT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AH
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AHT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AJ
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AJT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AK
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AKT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AM
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AMT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AP
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00APT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AQ
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AQT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00AR
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00ART
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00ER
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00ERT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00ES
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00EST
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00ET
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00ETT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00EU
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00EUT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00EV
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00EVT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00EW
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00EWT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00GA
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6121CI2A-00GAT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CE1A-0057
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CE1A-0057T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CE2A-0069
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CE2A-0069T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI1A-004D
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI1A-004DT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-004S
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-004ST
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00AS
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00AST
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00AT
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00ATT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00AU
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00AUT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00AV
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00AVT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00AW
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00AWT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00AY
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00AYT
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00B0
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00B0T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00B1
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00B1T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00B2
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00B2T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00B3
0.019500
0.042664
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC6122CI2A-00B3T
0.019500
0.090000
4
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.

Buy from the Microchip Store

Grid
View
Table
View
Filter:
Apply
Clear
Only show products with samples
Product
Leads
Package Type
Temp Range
Packing Media
5K Pricing
Buy
