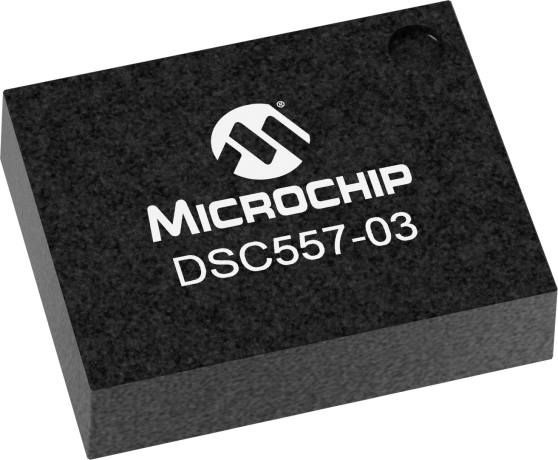

product primary image

DSC557-03

Dual-output Crystal-less PCIe Clock Gen

Status: In Production

Features:

  • Meets PCIe Gen1, Gen2, Gen3 & Gen4 specs
  • MEMS based clock generator eliminates the need for external 25MHz crystal
  • Dual HCSL Clock Output at 100MHz
  • Industry's widest temperature range:
  • Space Saving in14-Pin QFN at 3.2x2.5 mm
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The DSC557-03 is a crystal-less, two output PCI express clock generator meeting Gen1, Gen2, Gen3 and Gen4  specifications. The clock generator uses proven silicon MEMS technology to provide 100MHz differential output clocks with excellent jitter and stability over a wide range of supply voltages and temperatures. By eliminating the external quartz crystal, the DSC557-03 significantly enhances reliability and accelerates product development, while meeting stringent clock performance criteria for a variety of communications, storage, and networking applications.DSC557-03 has an Output Enable/Disable feature allowing it to disable the outputs when OE is low. The device is available in two different packages; a space saving 14 pin QFN (77% less board space) or a 16 pin TSSOP that is “drop-in” replacement to exisiting ICS557-03 clock. Additional output formats are also available in any combination of LVPECL, LVDS, and HCSL.

Additional Features
  • Meets PCIe Gen1, Gen2, Gen3 & Gen4 specs
  • MEMS based clock generator eliminates the need for external 25MHz crystal
  • Dual HCSL Clock Output at 100MHz
  • Industry's widest temperature range:
    • Ext. Industrial: -40°C to 105°C
    • Industrial: -40°C to 85°C
    • Ext. Commercial: -20°C to 70°C
  • Short lead time: 2 weeks
  • Space Saving in14-Pin QFN at 3.2x2.5 mm
  • Excellent shock and vibration immunity
  • High reliability
  • Supply Range of 2.25V to 3.6V
  • Lead Free & RoHS Compliant
Parametrics
Name
Value
Product Type
Low-Jitter Clock Generators
PLLs
1
Output Frequency (MHz)
100
# of Outputs
2
Voltage
2.25 - 3.63
PDB
False
OE
False
FSEL
False
CSEL
False
CLK
False
Output Logic
HCSL/LVDS/LVCMOS
Ultra Low Power
False
Output Frequency Min. (MHz)
100
Output Frequency Max. (MHz)
100

Documents

Jump to:

Data Sheets

Board Design Files

01/16/2019
32KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DSC557-0333SI1T
0.065000
0.204000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0343SI0T
0.065000
0.204000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0344SI1T
0.065000
0.204000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0333SL1T
0.065000
0.204000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0344SI0T
0.065000
0.204000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0334SI0T
0.065000
0.204000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0334SI0
0.065000
0.125000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0344SI0
0.065000
0.125000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0333SI1
0.065000
0.125000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0343SI0
0.065000
0.125000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0344SI1
0.065000
0.125000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0333SL1
0.065000
0.125000
16
TSSOP
4.4mm
Matte Tin
e3
DSC557-0333FE0T
0.019500
0.090000
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0333FI0T
0.019500
0.090000
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0333FL0T
0.019500
0.090000
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0341FE1T
0.019500
0.090000
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0343FI1T
0.019500
0.090000
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0344FE0T
0.019500
0.090000
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0344FI0T
0.019500
0.090000
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0344FI1T
0.019500
0.090000
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0344FL1T
0.019500
0.090000
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0333FE0
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0333FI0
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0333FL0
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0334FI1
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0341FE1
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0343FI0
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0343FI1
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0344FE0
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0344FE1
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0344FI0
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0344FI1
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
DSC557-0344FL1
0.019500
0.042664
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
