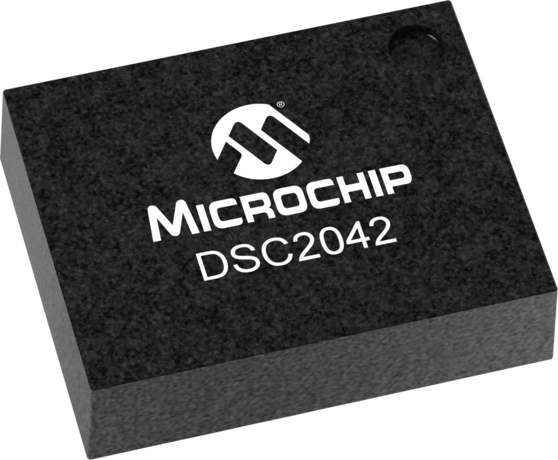

DSC2042

Status: In Production

Features:

  • Low RMS Phase Jitter: <1 ps (typ.)
  • High Stability: ±10, ±25, ±50 ppm
  • Industrial: -40°C to 85°C
  • Ext. Commercial: -20°C to 70°C
  • High Supply Noise Rejection: -50dBc
  • Two independent outputs: HCSL and LVPECL
  • 3-bit Output Frequency Combinations
  • Short Lead Times: 2 Weeks
  • HCSL Output: 2.3 to 460MHz
  • LVPECL Output: 2.3 to 460MHz
  • Miniature Footprint of 3.2mm x 2.5mm
  • Qualified to MIL-STD-883
  • 20x better MTF than quartz oscillators
  • Lead Free and RoHS Compliant
  • Supply Range of 2.25V to 3.6V
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The DSC2042 series of high performance dual output oscillators utilize a proven silicon MEMS technology to provide excellent jitter and stability while incorporating additional device functionality. The two outputs are controlled by separate supply voltages to allow for high output isolation. The frequencies of the outputs can be identical or independently derived from a common PLL frequency source. The DSC2042 has provision for up to eight user-defined preprogrammed, pin selectable output frequency combinations.DSC2042 is packaged in a 14-pin 3.2mm x 2.5mm QFN package and available in temperature grades from Ext. Commercial to Industrial.

Additional Features
    • Low RMS Phase Jitter: <1 ps (typ.)
    • High Stability: ±10, ±25, ±50 ppm
    • Wide Temperature Range
      • Industrial: -40°C to 85°C
      • Ext. Commercial: -20°C to 70°C
    • High Supply Noise Rejection: -50dBc
    • Two independent outputs: HCSL and LVPECL
    • Pin-Selectable Configurations:
      • 3-bit Output Frequency Combinations
    • Short Lead Times: 2 Weeks
    • Wide Freq. Range:
      • HCSL Output: 2.3 to 460MHz
      • LVPECL Output: 2.3 to 460MHz
    • Miniature Footprint of 3.2mm x 2.5mm
    • Excellent Shock & Vibration Immunity
      • Qualified to MIL-STD-883
    • High Reliability
      • 20x better MTF than quartz oscillators
    • Lead Free and RoHS Compliant
    • Supply Range of 2.25V to 3.6V
Parametrics
Name
Value
Product Type
Low-Jitter Clock Generators
# of Outputs
2
Voltage
2.25 - 3.63
PDB
False
OE
False
FSEL
False
CSEL
False
CLK
False
Output Logic
HCSL, LVPECL
Ultra Low Power
False
Output Frequency Min. (MHz)
2.3
Output Frequency Max. (MHz)
460

Documents

Jump to:

Data Sheets

Supporting Collateral

Programming Specifications


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DSC2042FI2-M0005T
0.019500
0.090000
14
VQFN
2.5x3.2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
