Device Overview

Summary

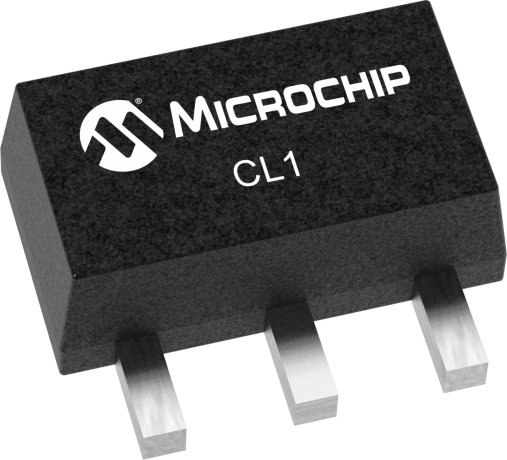

CL1 is a high voltage, temperature compensated, constant current source. The device is trimmed to provide a constant current of 20mA±5% at an input voltage of 45V. No external components are required. The device can be used as a two terminal constant current source or constant current sink. A typical application for the CL1 is to drive LEDs with a constant current of 20mA. Multiple CL1s can also be used in parallel to provide higher currents such as 40mA, 60mA or 80mA. The device is available in a SOT-89 package.

Additional Features
  • 5.0 to 90V operating range (VA-B)
  • 20mA ±5% at 45V (VA-B)
  • -8.5µA/°C typical temperature coefficient
  • Available in SOT-89 package
  • No external components (two terminal device)
  • Can be paralleled for higher current

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Output Voltage (V)
Output Current (mA)
Price 5K
5.0 - 90
20
$0.26
5.0 - 220
20
$0.79
5.0 - 90
25
$0.26
4.0 - 90
20
$0.78
4.0 - 90
25
$0.79
4.0 - 90
30
$0.80
1.0 - 90
20
$0.33
1.0 - 90
25
$0.33
4.0 - 90
100
$0.90
4.0 - 90
100
$1.08
1.2 - 88
50
$0.82
8.0 - 12
3
$0.35
13.9 - 18
3
$0.37
1.2 - 440
10
$0.43

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
CL1N8-G
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
